Product Details:
|
| Product Name: | Marine Ship Rubber Airbag | Diameter: | 0.6-2.5m |
|---|---|---|---|
| Warranty Period: | 24 Months | Length: | 5-26m |
| Cord Layers: | 3-12 Layers | Color: | Black |
| High Light: | Industrial Built Marine Rubber Airbag,Dia2.5m Marine Rubber Airbag,12layers Ship Launching Airbag |
||
Marine Rubber Airbags are also known as inflatable marine airbags, ship launching airbags roller bags, air lift bags, and salvage bags. Airbags range in size from 0.6 to 2.8m diameter, with lengths of 5.0m to 24.0m 'effective length'. They are widely used in cargo boat launching and landing, lifting and moving sunken ships, installation of underwater buoyancy aid, and salvaging stranded boats. Airbags have the benefit of not only saving labor and time, but also costs saving. Additionally they are flexible, portable, and dependable. Meanwhile, the airbags have long service year and high carrying capacity because of our superior technology and components.
Structure of Florescence Marine Rubber Airbag
1. Terminal iron
2. Cylindrical airbag body
3. Cone airbag body
D: Diameter of airbag
L: Valid length of airbag
Loa: Total length of airbag
Materials of Florescence Marine Rubber Airbag
An airbag is to be constructed of an outer rubber layer, one or more synthetic-tyre-cord layers, and an inner rubber layer. The arrangement of synthetic-tyre-cord reinforcement layers is shown in the picture below, all materials shall be vulcanized firmly.

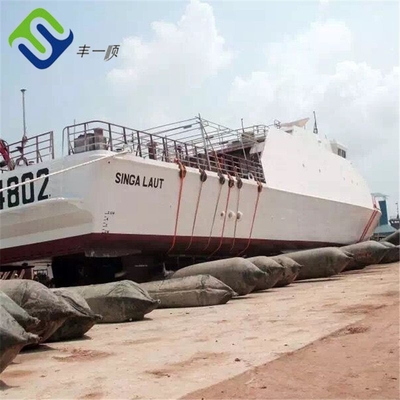

Procedure of launch a ship by marine airbags
1.Pre-launch preparation work for shipyard
Slipway Enhancement
Water survey
Vessel skeg enhancement
Ground anchor
Seal thruster holes if there are.
2.Basic equipments needed for ship launching
Rigging equipments:Winch,Pulley,Swivel,Lug,Shackle,Wire sling,Ground Anchor
Inflate equipments:Air Compressor,Inflating Pipe
Airbag moving equipments:Forklift,mobile crane
3.Crew preparation
4.Rigging Arrangements
5.Lifting the blocks
6.Move vessel forward
7.Vessel Launching
Advantages of Florescence Marine Rubber Airbag
1.Big carrying capacity
2.High capacity against compression and twisting
3.New design of anti-bursting construction at the end
4.Optimized structural layout
5.Durable aging resistance and anti-wear characteristic
6.Higher flexibility and damping capacity
Specification:
| Diameter | 0.5-2.8m |
| Length | 5-26m |
| Cord Layers | 3-12 layers |
Precautions of ship landing airbags
1. Over pressure Control:
Strictly control the operating pressure, over pressure is forbidden.
2. The Landing Slipway Requirements:
The landing ground should be ground or cement concrete, according the tonnage of different ships.
3. Avoid Sharp Objects:
Make sure no sharp objects and smooth & clean ground during using airbags in case of any break.
4. Avoid Distortion And Overweight:
Avoid distortion in the length direction during rolling and avoid overweight load after gas charging.
