Product Details:
|
| Cord Fabric: | 1880D2,100% Raw Silk | Warranty Period: | 24 Months |
|---|---|---|---|
| Work Pressure: | 0.07-0.33Mpa | Thickness: | More Than 5.5mm |
| Layer: | 3-10 Layers | Color: | Black |
| High Light: | pneumatic air bags,pneumatic lifting bags,Ship Launching Marine Rubber Airbags |
||

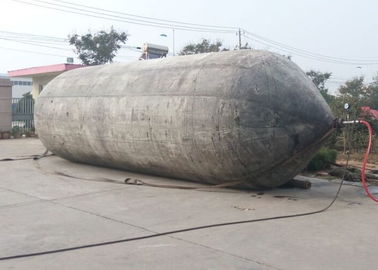

Saving Material And Labor Cost Of Boat Inflatable Marine Rubber Airbag
Advantages of Florescence marine rubber airbag
1. High strength,anti-aging
2. Good air tightness,safety and reliability
3. High shock absorption,less reverse impact on ships
4. High kneading
The structure of Florescence rubber airbag:
It consists of a bag body and an iron-end component. The bag body is manufactured by vulcanizing the preliminary shaped airbag made of base rubber and reinforced fiber material. The material of the iron- end component is metal, and it is connected to the bag body firmly.
Standard specifications of Florescence marine rubber airbag
1> Diameter (D): From 0.3m to 2.2 m.
2> Effective Length (EL): From 6m to24m.
3> Total Length (TL): From 7m to28m.
4> Other specification of ship launching airbags also available upon customer’s request
Technical parameters of Florescence airbag:
| Type | Diameter | Pressure | marine airbag can load | ||
|
Working height
|
Static Pressure load |
Dynamic pressure load
|
|||
|
Plan airbag |
0.8m | 0.06mpa | 0.3m | 8 ton | 4 ton |
| 1m | 0.05mpa | 0.3m | 9 ton | 5 ton | |
| 1.2m | 0.05mpa | 0.35m | 10 ton | 6 ton | |
| 1.5m | 0.05mpa | 0.7m | 12 ton | 8 ton | |
| 1.8m | 0.04mpa | 0.8m | |||
|
Slope airbag |
0.8m | 0.06mpa | 0.3m | 9.6 ton | 6 ton |
| 1m | 0.05mpa | 0.3m | 10.8 ton | 7.5 ton | |
| 1.2m | 0.05mpa | 0.35m | 12 ton | 9 ton | |
| 1.5m | 0.05mpa | 0.7m | 14.4ton | 12 ton | |
| 1.8m | 0.04mpa | 0.8m | 18 ton | 15 to | |
|
Intertwine airbag |
0.8m | 0.06mpa | 0.3m | 12 ton | 7.2 ton |
| 1m | 0.05mpa | 0.3m | 13.5 ton | 9 ton | |
| 1.2m | 0.05mpa | 0.35m | 15 ton | 10.8 ton | |
| 1.5m | 0.05mpa | 0.7m | 18 ton | 14.4 ton | |
| 1.8m | 0.4mpa | 0.8m | 22.5 ton | 18 ton | |
Florescence inflatable rubber airbag is a kind of innovative product with our own intellectual property.It has been widely used in the ship launching and landing,the caissons lifting movement, the removal of other heavy objects, underwater installation work buoyancy aid and other areas. Marine airbag applications are not affected by site constraints, and don't need large-scale machinery and equipment,so that to shorten the project cycle and save a lot of money. After 20 years of development practice,prove that it is safe,efficient, green,and flexible.
FAQ
Q1: What’s the material of your products?
A: Our raw material is natural rubber, and rubber-dipped nylon cord fabric
Q2: Are you factory or trading company?
A: QingdaoFlorescence Co.,Ltd is the company and factory,located in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which is convenient for transportation.
Q3: How can I get samples from you?
A: We are honored to provide you samples for check quality.Customers just confirm freight collect and then we could send out the sample by FedEx,DHL,UPS,TNT and so on.
Q4: What’s certificates can your company provide?
A: We can provide CCS,ABS,DNV,LR,BV certificates.
