BV Approved Marine Salvage Airbag Ship Rubber Airbags For Floating Boat Lift

Certification
China Qingdao Florescence Marine Supply Co., LTD. certification
China Qingdao Florescence Marine Supply Co., LTD. certification
I'm Online Chat Now

BV Approved Marine Salvage Airbag Ship Rubber Airbags For Floating Boat Lift

BV Approved Marine Salvage Airbag Ship Rubber Airbags For Floating Boat Lift
BV Approved Marine Salvage Airbag Ship Rubber Airbags For Floating Boat Lift BV Approved Marine Salvage Airbag Ship Rubber Airbags For Floating Boat Lift BV Approved Marine Salvage Airbag Ship Rubber Airbags For Floating Boat Lift BV Approved Marine Salvage Airbag Ship Rubber Airbags For Floating Boat Lift

Large Image :  BV Approved Marine Salvage Airbag Ship Rubber Airbags For Floating Boat Lift

Product Details:
Place of Origin: China
Brand Name: FLORESCENCE
Certification: CCS BV RS ISO
Model Number: JZ-001
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 50-1000 per piece
Packaging Details: Pallet packing
Delivery Time: 10-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per month

BV Approved Marine Salvage Airbag Ship Rubber Airbags For Floating Boat Lift

Description
Materials: Natural Rubber Certificate: BV CCS And ISO
Diameter: 0.5m-2.8m Length: 5m-30m
Brand: FLORESCENCE
High Light:

BV Approved Marine Salvage Airbag

,

Floating Boat Lift Marine Salvage Airbag

,

Dia2.8m Ship Rubber Airbags

BV Approved Salvage Marine Airbag Ship Rubber Airbags For Floating Boat Lift

Overview of ship salvage airbag

Vessel salvage airbags are also called rubber rollers, marine lifting rubber tubes. They are widely used for salvage engineering and floating operation. They are the best choice for 100-2000 tons buoyancy needs. Florescence airbags have the advantages as below:

1. Special synthetic tyre cord layer material
Our salvage airbags are made of special synthetic tire-cord layers, which have much better performance than PVC coated fabrics.

2. Holistic screw type salvage airbags
Our rubber rollers are a totally enclosed tube with cone ends. It is manufactured using holistic screw technology. This design ensures that there aren't any welded seams. This makes them stronger than RF welded salvage airbags..

3. High pressure design

The maximum working pressure for lifting the airbag is 0.25 Mpa. This means that they can be used at a depth of 25m.

4. Equipped with accessories
Salvage lifting rubber bags are equipped with rubber handles, nylon rope net and pulling rings.



Working principle of rubber airbag

Through inflating the compressed air to produce buoyancy, then using buoyancy to salvage. It is easy to operate and safe and reliable.
In addition to hang a ship in a fixed position or connected with lifting jack of the bottom of ship, ship airbag also can be placed inside the ship cabin, through filling out the cabin water to provide buoyancy.



image002_副本image004_副本

How to salvage ship?

What equipment need to install / fix / inflate the rubber airbag for salvage?

You will need the diver to dive underwater and strap our deflated airbag to the bottom or side of the rescue boat with a rope or net. Then the airbag is inflated with an air compressor connected through a rubber hose on the ground.

In addition to airbags, we can also provide any equipment required during the lifting or salvage of the ship, including ropes or nets, winches, rubber tubes and air compressor machines.








Operating notes as your reference:

1. The lifting speed is controlled to 1 meter per minute under normal circumstances. People should control the lifting speed to ensure that airbag havs enough time to exhaust the expanded air through the overpressure valve.

2. Binding method is very important for the success of salvage. If possible, please send us the site conditions, photos and vidoes, we will recommend a suitable salvage solution
3. The working depth of the rubber airbags is usually less than 25m. If it exceeds 25m, we can lift the boat to working depth using airbags and ropes.



Techinical data of marine rubber salvage airbag

Effective
Length (m)
Marine Salvage Airbags Buoyancy(tons)
D=1m D=1.2m D=1.5m D=1.8m D=2m
5 3.93 5.65 8.84 12.72 15.71
6 4.71 6.79 10.6 15.27 18.85
7 5.5 7.92 12.37 17.81 21.99
8 6.28 9.05 14.14 20.36 25.13
9 7.07 10.18 15.9 22.9 28.27
10 7.85 11.31 17.67 25.45 31.42
11 8.64 12.44 19.44 27.99 34.56
12 9.42 13.57 21.21 30.54 37.7
13 10.21 14.7 22.97 33.08 40.84
14 11 15.83 24.74 35.63 43.98
15 11.78 16.96 26.51 38.17 47.12
16 12.57 18.1 28.27 40.72 50.27
17 13.35 19.23 30.04 43.26 53.41
18 14.14 20.36 31.81 45.8 56.55

Production line of ship airbag

Technology of our floating rubber airbag is overall winding.

The overall structure is more reasonable, the texture is clear, there are no juncture, high load. It is safer than the overlap technology (roller), and the bearing capacity is stronger.

image010_副本

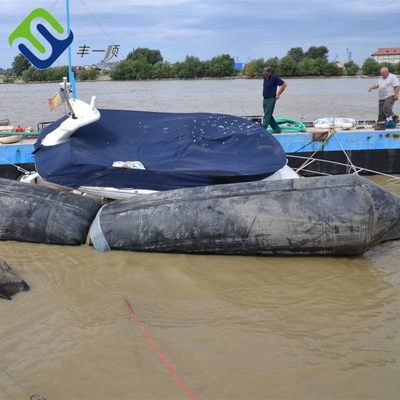

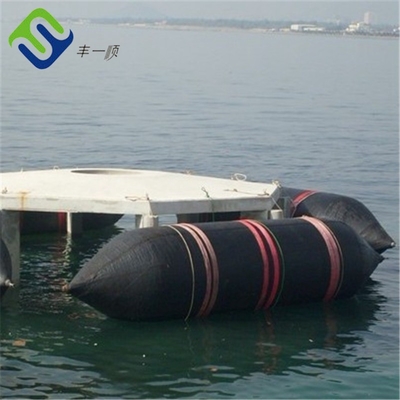

Customer usage photos of boat airbag

image012(001)image014(001)

image016(001)image019(001)
