Product Details:
|
| Size: | Customized,according To Customers' Request | Pressure: | 0.17-0.33Mpa |
|---|---|---|---|
| Package: | Pallet Or Wooden Box,according To Customers' Request | Material: | Natural Rubber And Cord Fabric |
| Layer: | 3-12 Layers | Quality: | Excellent |
| High Light: | marine salvage air lift bags,boat recovery airbags,CCS Approved Marine Salvage Airbags |
||
Salvage Marine Airbag / Salvage Pontoon / Marine Salvage Airbags
Florescence salvage / refloatation marine airbags are the most commonly used tool for recovering submerged objects and supply enough buoyancy for objects. Floating marine airbags are very small in size while deflated. Thus, they can be easily transported and deployed when space is an issue and under water conditions. We can provide the exact floating ton capability based on clients requirements. The salvage refloatation airbags have flexible applications and can be broadly implemented in shipwreck salvaging, floating bridge and dock construction, rescue and remove of wrecked ships. It is also being use as temporary marine transportation device.
Advantages of Florescence marine salvage airbags
Big carrying capacity
The carrying capacity of the inflating marine rubber airbag is an important indictor of its quality.
The ISO14409:2011,The Airbag For The Ship Up To Slipway And launching, specifies its working pressure and the load-bearing capacities per meter under various compression ratio. Our new generation of airbags are made of novel rubber compounding and high-tension fortifying fiber. Their carrying capacities have been over one times stronger than the standard requirements. That means that less airbags are needed for the ships up to the slipway and launching if with marine rubber airbags meanwhile the safe reliability is also guaranteed.
Standard specifications of Florescence marine salvage airbags
1> Diameter (D): From 0.3m to 2.2 m.
2> Effective Length (EL): From 6m to 24m.
3> Total Length (TL): From 7m to28m.
4> Other specification of ship launching airbags also available upon customer’s request

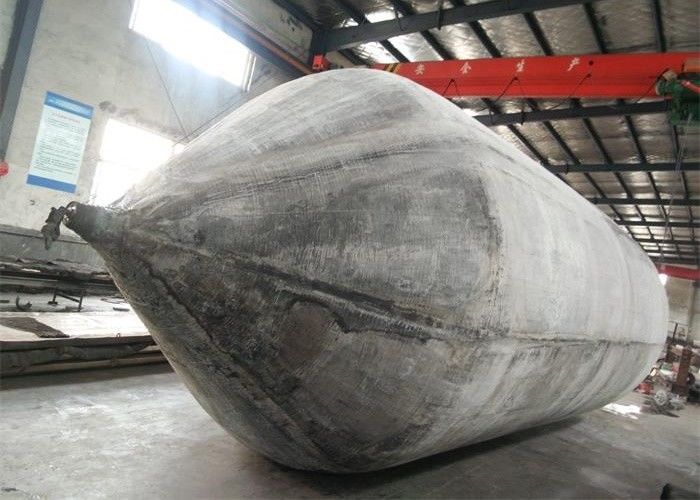

The structure of Florescence rubber airbag:
It consists of a bag body and an iron-end component. The bag body is manufactured by vulcanizing the preliminary shaped airbag made of base rubber and reinforced fiber material. The material of the iron- end component is metal, and it is connected to the bag body firmly.
The weight for 8 layers marine salvage airbags:
|
Effective Length |
Weight of an airbag(Theoretical value) |
|||||
|
|
D=0.8m |
D=1.0m |
D=1.2m |
D=1.5m |
D=1.8m |
D=2.0m |
|
5m |
158kg |
208kg |
256kg |
335kg |
423kg |
483kg |
|
6m |
189kg |
241kg |
299kg |
387kg |
485kg |
552kg |
|
7m |
213kg |
276kg |
340kg |
439kg |
546kg |
619kg |
|
8m |
241kg |
310kg |
380kg |
490kg |
608kg |
688kg |
|
9m |
270kg |
343kg |
422kg |
541kg |
669kg |
757kg |
|
10m |
298kg |
378kg |
463kg |
593kg |
731kg |
826kg |
|
11m |
325kg |
413kg |
503kg |
645kg |
793kg |
895kg |
|
12m |
353kg |
447kg |
545kg |
696kg |
855kg |
963kg |
|
13m |
380kg |
481kg |
585kg |
747kg |
917kg |
1032kg |
|
14m |
408kg |
516kg |
626kg |
799kg |
979kg |
1101kg |
|
15m |
437kg |
549kg |
667kg |
851kg |
1041kg |
1169kg |
|
16m |
464kg |
584kg |
708kg |
902kg |
1104kg |
1239kg |
|
17m |
492kg |
618kg |
749kg |
954kg |
1166kg |
1307kg |
|
18m |
520kg |
653kg |
791kg |
1006kg |
1228kg |
1376kg |
Storage of the air bag
* If the air bag will not used for quite a long time, it shall be washed and dried, filled with French chalk inside and coated with French chalk outside as well as put in dry, shady and ventilated place in the room.
* Place storing the air bag shall be far away from the heat source.
* The air bag can’t contact with acid, alkali, grease and organic solvents.
*The air bag should be stretched flat when not used. it’s not allowed to pole up and stack heavy object on the air bag.
