Product Details:
Place of Origin: Shandong,China
Brand Name: FLORESCENCE
Certification: CCS,ABS,DNV,LR,ISO9001
Model Number: FL-SJY005
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: container,pallet,wooden box
Delivery Time: 5-10 days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 30PCS/Month

0.17 - 0.33MPa Pressure Marine Salvage Airbags With Favourable Air Tightness

Description
Layer: 3-10 Layers Size: Customized,according To Customers' Request
Pressure: 0.17-0.33Mpa Warranty Period: 24 Months
Material: Natural Rubber And Cord Fabric Package: Pallet Or Wooden Box,according To Customers' Request
High Light:

marine salvage air lift bags

,

boat recovery airbags

,

ABS Marine Salvage Airbags

Inflatable Marine Salvage Airbags With Good Air Tightness Advantage



Storage of the marine salvage airbags



1. If the air bag will not used for quite a long time, it shall be washed and dried, filled with French chalk inside and coated with French chalk outside as well as put in dry, shady and ventilated place in the room.



2. Place storing the air bag shall be far away from the heat source.



3. The air bag can’t contact with acid, alkali, grease and organic solvents.



4. The air bag should be stretched flat when not used. it’s not allowed to pole up and stack heavy object on the air bag.



Advantages of Florescence marine salvage airbags



1. Big carrying capacity



2. High capacity against compression and twisting



3. Optimized structural layout



4. Higher flexibility and damping capacity



Standard specifications of Florescence marine salvage airbags



1> Diameter (D): From 0.3m to 2.2 m.



2> Effective Length (EL): From 6m to24m.



3> Total Length (TL): From 7m to28m.

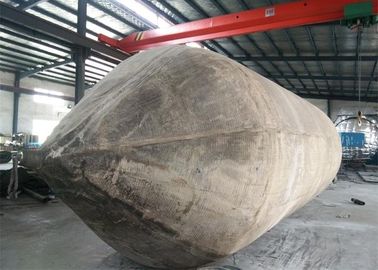

The structure of Florescence rubber airbag:



It consists of a bag body and an iron-end component. The bag body is manufactured by vulcanizing the preliminary shaped airbag made of base rubber and reinforced fiber material. The material of the iron- end component is metal, and it is connected to the bag body firmly.


Working pressure of Florescence marine rubber airbag:



Diameter Layer Work pressure Diameter Layer Work pressure
D=0.8M 3 0.13 Mpa D=1.5M 3 0.07 Mpa
  4 0.17 Mpa   4 0.09 Mpa
  5 0.21 Mpa   5 0.11 Mpa
  6 0.25 Mpa   6 0.13 Mpa
  7 0.30 Mpa   7 0.15 Mpa
  8 0.33 Mpa   8 0.18 Mpa
D=1.0M 3 0.10 Mpa D=1.8M 3 0.06 Mpa
  4 0.13 Mpa   4 0.08 Mpa
  5 0.17 Mpa   5 0.09 Mpa
  6 0.20 Mpa   6 0.11 Mpa
  7 0.25 Mpa   7 0.13 Mpa
  8 0.28 Mpa   8 0.15 Mpa
D=1.2M 3 0.09 Mpa D=2.0M 3 0.05 Mpa
  4 0.11 Mpa   4 0.07 Mpa
  5 0.14 Mpa   5 0.08 Mpa
  6 0.17 Mpa   6 0.10 Mpa
  7 0.20 Mpa   7 0.12 Mpa
  8 0.23 Mpa   8 0.14 Mpa



FAQ



Q1: What’s the material of your products?

A: Our raw material is natural rubber, and rubber-dipped nylon cord fabric



Q2: What’s your delivery time and payment terms?

A: Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.



Q3: What’s certificates can your company provide?

A:We can provide CCS,ABS,DNV,LR,BV certificates.



Q4: What about your warranty time?

A: Our warranty period is 24 months.During this time,any problems about products from our factory,we solemn promise to change and repair them for free;if problems from customers’ improper operating,we could provide free guidance and repair materials
