Product Details:
|
| Product Name: | Florescence Ship Inflatable Mooring Dock Rubber Bumpers Yokohama Type Pneumatic Fenders | Material: | Natural Rubber + Synthetic Cord Layers |
|---|---|---|---|
| Size: | D1.2L2.0m | Diameter: | 0.3-4.5m |
| Length: | 0.6-9.0m | Initial Pressure: | 50KPA, 80KPA |
| Certificate: | ISO, BV, CCS, RS, Etc | Application: | STS, STB, STD |
| Warranty: | 2 Years | Service Life: | 6-8 Years |
| High Light: | Inflatable Mooring Dock Rubber Bumpers,Ship Yokohama Pneumatic Fenders,Ship Inflatable Mooring Pneumatic Fenders |
||

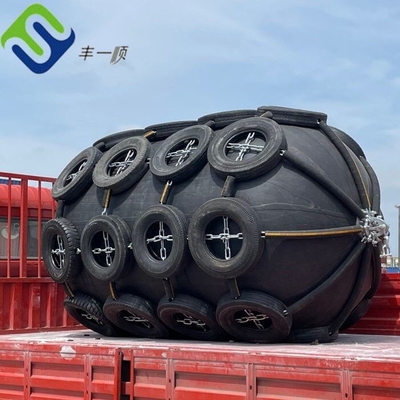

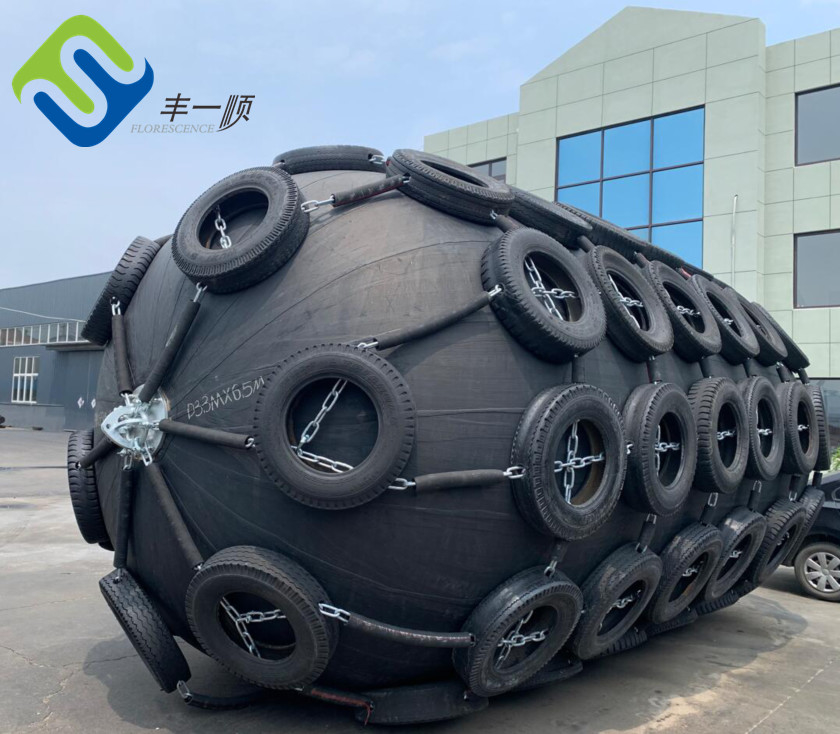

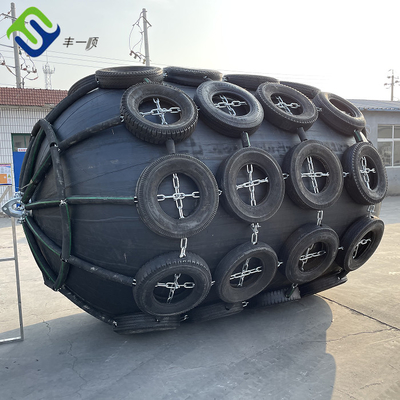

Instruction of Florescence Ship Inflatable Mooring Dock Rubber Bumpers Yokohama Type Pneumatic Fenders
Pneumatic rubber fender is installed on the dock or ship, to absorb the collision energy between the ship and the dock or ship when berthing or mooring, and to protect the ship and the dock from damage.
Pneumatic rubber fender has the advantages of low reaction force, small surface pressure and reasonable energy absorption. In berthing, the ship rolling and pitching adaptability, it will not affected by the size of the ship and is widely used for installation and maintenance convenient, especially suitable for the dock.
Features of pneumatic rubber fenders
* Absorb more energy, less reverse impact on the ships
* More flexible ,easy installation
* Long term service life, over 6- 8 years
* Not being bent out of shape under pressure
* Good air tightness, safety and reliability
* High shock absorption,low counter force and enhance port ability
* Produce according to ISO17357:2002 completely
* Many different sizes and shapes available
* Approve ISO9001, CCS, BV, RS, etc inspection
* Durable, practical and economical
* Good quality have been checked by many buyers

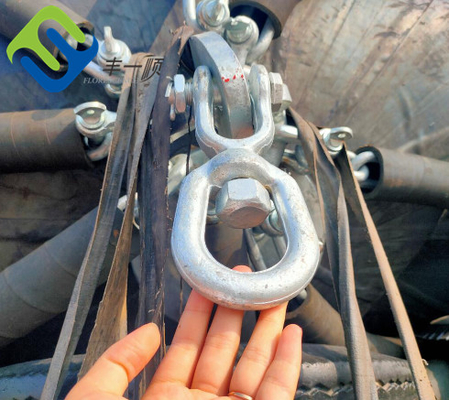

* Optional tire and chain ,can provide chain with hot galvanizing or stainless steel
* Optional end fittings for the better suitable of applications.
Application of pneumatic rubber fenders
♦ Oil Tankers, Container Vessels
♦ Ship to Ship(STS), Ship to Wharf(STW)
♦ Luxury Yachts, Ocean Platforms
♦ Large Shipyards, Fender Systerm
♦ Military Ports, Warships
♦ Large underwater foundations of bridges, etc.
Factors on design and selection of pneumatic rubber fender
1.Maximum energy absorption
2.Reaction force
3.The distance requirements when two ships berth or one ship goes alongside wharf, including the maximum distance and the minimum distance
4. The size of vessels
5.The factors on storm from real environments and temperature changes.
Specification of pneumatic marine fender
|
Specification D*L(mm) |
Initial pneumatic pressure 50KPA | Applicable ships tonnage (T) | ||
| Body Weight(Kg) | R(KN) | GEA(KJ) | ||
| 500x1000 | 25 | 64 | 6 | 50 |
| 600x1000 | 32 | 74 | 8 | 50 |
| 1000x1500 | 80 | 182 | 32 | 100 |
| 1000x2000 | 100 | 257 | 45 | 200 |
| 1200x2000 | 120 | 297 | 63 | 300-500 |
| 1350x2500 | 165 | 427 | 102 | 300-500 |
| 1500x3000 | 315 | 597 | 153 | 1000 |
| 1700x3000 | 405 | 639 | 191 | 1000 |
| 2000x3500 | 590 | 875 | 308 | 3000 |
| 2500x4000 | 1050 | 1381 | 663 | 10000 |
| 2500x5500 | 1333 | 2019 | 943 | 10000 |
| 3000x5000 | 1880 | 2104 | 1210 | 10000above |
| 3000x6000 | 2160 | 2583 | 1485 | 10000above |
| 3300x4500 | 2020 | 1884 | 1175 | 10000above |
| 3300x6500 | 2700 | 3015 | 1814 | 10000above |
Purpose of pneumatic fenders

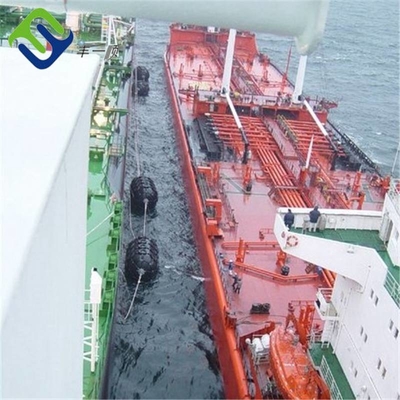

♦ Ship to ship berthing
Accompanied by a large ship, the risk of two ship berthing at sea is also increased, especially when the weather changes, accompanied by wind and waves.Adopt pneumatic fender as side of the buffer, not only make heavy berthing becomes easy, and improve the efficiency of the transportation operations. Pneumatic fender is mainly used for: Ice in the Antarctic ocean fishing ships, large oil tanker berthing.
♦ Used for terminal dock protection
Of the ship is very large, the cause of berthing impact energy have multiplied.Inflatable rubber fender because of its high energy absorption and low reaction force features are widely used.
Advances of pneumatic fenders
1. Pneumatic pressure control in ± 5% of the rated pressure
2. Test pressure normally, add pressure in a timely manner
3. Avoid contact with sharp objects
4. When Long time not need, should wash to dry, filled with right amount of compressed air, placed in a cool dry ventilated place.
5. Storage place away from heat, acid and alkali, oil and grease
6. When store floating fender, shall not be folded and piled up
