Product Details:
|
| Product Name: | Inflatable Marine Salvage Rubber Ship Launching Airbags Air Lift Bags For Docking | Size: | D1.5L15m 8layers |
|---|---|---|---|
| Material: | Natural Rubber | Application: | Ship Launching, Docking, Lifting, Salvage, Etc |
| Certificate: | ISO, BV, CCS, RS, IRS | Service Life: | 6-8 Years |
| MOQ: | 1 PIECE | ||
| High Light: | Salvage Rubber Ship Launching Airbags,Docking Air Lift Bags,Inflatable Ship Launching Airbags |
||
Inflatable Marine Salvage Rubber Ship Launching Airbags Air Lift Bags For Docking
1. Material: Natural Rubber and Nylon Cord
2. Fittings: Inflation Valve, Pressure Gauge, Pulling Ring
3. Layers Range: 3-12 Layers
4. Size Range: Dia 0.6-2.8m, Len 5.0-25m
5. Service Life: 5-8 Years
6. Certs: CCS, BV, ISO, RS, ABS, Etc
Why choose Qingdao Florescence ship rubber airbags?
1.Over 30 years extensive experience, Navy supplier
2.Products are certificated by CCS, BV, ABS, IRS, RS, etc.
3.Strict control of quality inspection and raw materials.
4.Possibilities for fast delivery from stock or with short lead times.
Marine rubber airbags have the best designed structure which consists of five different functional membranes in rubber layers.
1) Outer rubber layer
The outer rubber layer that covers the outside of marine airbag to protect under layers from abrasion and other external forces. This compound has sufficient tensile and tearing strength to withstand any condition and hard usage.
2) Inner rubber layer
The inner rubber layer seals pressurized air inside marine airbags.
3) Synthetic-tire-cord layer as reinforcement
The reinforcement cord layers, which are made of synthetic-tire-cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and distribute stress evenly. So they can provide strong efficient reinforcement.
| Type | D=0.8m | D=1.0m | D=1.2m | D=1.5m | D=1.8m | D=2.0m |
| 3layers | 0.13MPa | 0.10MPa | 0.09MPa | 0.07MPa | 0.06MPa | 0.05MPa |
| 4layers | 0.17MPa | 0.13MPa | 0.11MPa | 0.09MPa | 0.08MPa | 0.07MPa |
| 5layers | 0.21MPa | 0.17MPa | 0.14MPa | 0.11MPa | 0.09MPa | 0.08MPa |
| 6layers | 0.25MPa | 0.20MPa | 0.17MPa | 0.13MPa | 0.11MPa | 0.10MPa |
| 7layers | 0.29MPa | 0.23MPa | 0.20MPa | 0.15MPa | 0.13MPa | 0.12MPa |
| 8layers | 0.33MPa | 0.26MPa | 0.23MPa | 0.17MPa | 0.15MPa | 0.14MPa |
Features of ship landing airbag
●Different airbag size stock available, quick delivery
●Provide repair kit and on site instruction
●Long time service life can be reused many times
●Wear resistance and anti aging
●Good raw material and cord fabric
●Do no harm to the environment. Time & money saving
●Need no more than air compressors, winches and ropes
●Marine airbags are much cheaper and portable than other methods
.

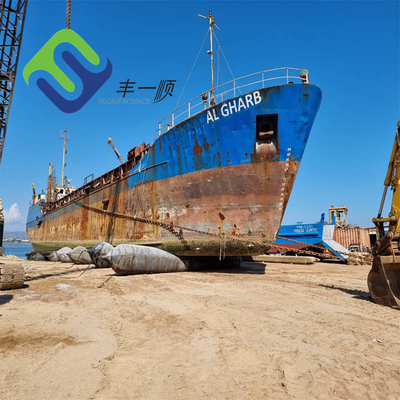

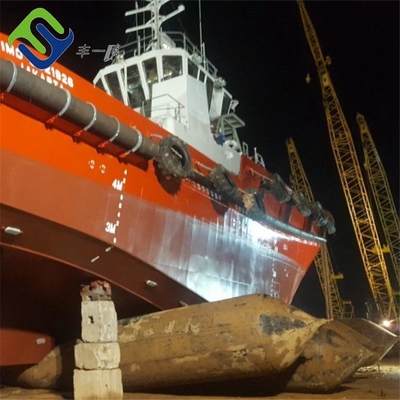

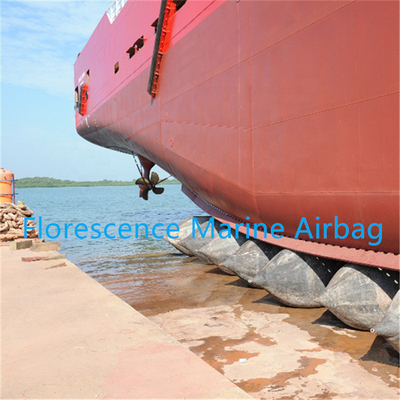

How to launch ship by marine airbag
Step1: Prepare the launching slipway and related workers. As per calculation, select and check the appropriate marine airbags and quantity. Tidy up the launching slipway. Fix the ship by winch and anchors. Prepare all the necessary equipments.
Step2: Taking out all standing blocks under stern and middle one by one, and put in airbags. The distance between two rows should be confirmed as per the calculation.
Step3: Taking out all standing blocks under the prow. Run the winch and release the cable. Let the ship launch to water.
Step4: After launching, check all the deckhouse to confirm if there is any problem. Meanwhile, retrieving all the airbags.
Advantages of our company---Qingdao Florescence
1. Top 3 supllier
2. Products are certified by CCS, BV, IRS, RS, ABS, etc.
3. Navy supplier
4. Over 30 years' experience
