Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS

Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS
Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS
Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS

Large Image :  Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS

Product Details:
Place of Origin: Shandong, China
Brand Name: Qingdao Florescence
Certification: CCS,TUV, BV, ISO, etc
Model Number: NC230811-3
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: nude, container or customized
Delivery Time: 15-25 Days
Payment Terms: T/T, L/C, etc.
Supply Ability: 50 pieces per month

Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS

Description
Material: Natual Rubber:RSS3 Diameter: From 0.3-4.5m,customzied
Length: From 0.5-9.0m,customized Warranty Period: 24 Months Without Misusec
Initial Pressure: 0.05-0.08Mpa Color: Black,grey,white
High Light:

STS Marine Pneumatic Rubber Fender

,

Yokohama Boat Rubber Fender

,

RSS3 Rubber Marine Fender

Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS 0

Ship Wharf Fender Inflatable anti-collision pad Tire Chain Cover 10-year service life Wholesale and retail Price negotiable

ISO17357 High pressure Floating pneumatic rubber fenders
Layer made of synthetic-tyre-cord fabric, which maintains the internal air pressure of the fender.

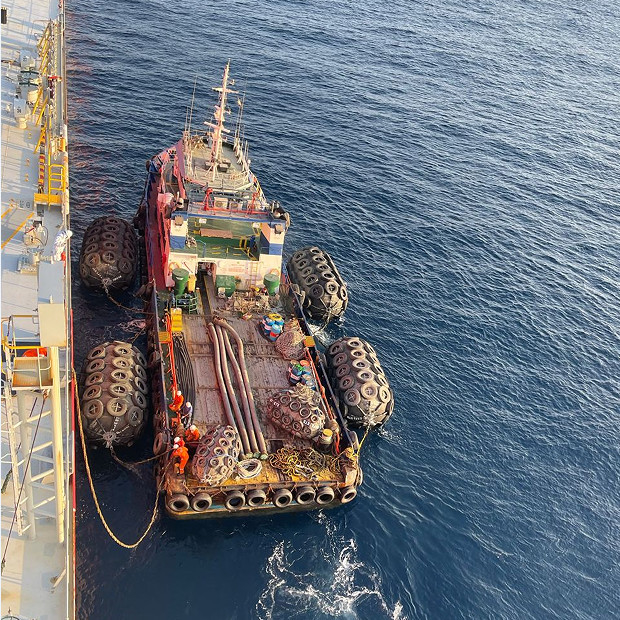

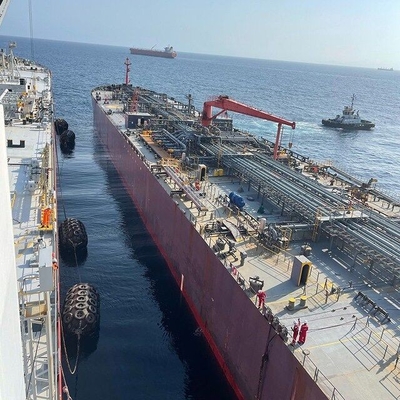

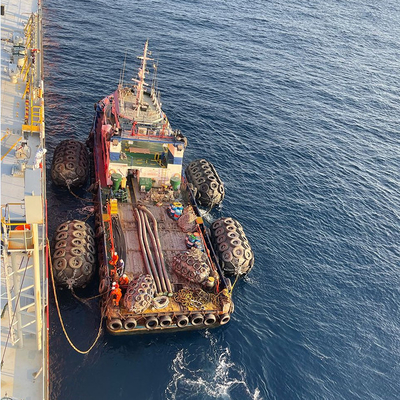

Marine fender also called pneumatic fender, rubber fender, yokohama fender, made by rubber & multi layer of rubber-dipped tyre fabric, is a leading anti-collision device for marine application in the world today. Marine fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms.

Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS 1
Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS 2
1.Outer Rubber
Cover outside on the ball of rubber layer, which is used to protect skeleton material and inner rubber ball from damage of
external force.
2.Cord layers
Reinforced cord rubber layer is composed of winding synthetic cord layer, it is mainly used for maintain the internal air
pressure.
3. Inner Rubber
On the ball inside the rubber layer, which is used to prevent air leakage and control the ball pressure.
4. End Flange
The metal parts at both ends of fender, which can be fitted with charging valve and safety valve.
Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS 3
Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS 4


Specification

DXL(m)

0.05Mpa(Initial pressure 0.05Mpa) (Initial pressure 0.08Mpa)
Weight(kg) Reaction force(KN)

GEA

(KJ)

Weight

(kg)

Reaction force(KN)

GEA

(KJ)

1.2X2.0 120 297 63 165 390 88
1.35X2.5 165 427 102 226 561 142
1.5X3.0 315 579 153 370 761 214
1.7X3.0 405 639 191 436 840 287
2.0X3.5 590 875 308 632 1150 430
2.5X4.0 1050 1381 663 1110 1815 925
2.5X5.5 1333 2019 943 1410 2653 1317
3.0X5.0 1880 2000 1050 2155 2709 1571
3.0X6.0 2160 2488 1312 2470 3292 1888
3.3X4.5 2020 1884 1175 2300 2476 1640
3.3X6.0 2300 2783 1675 2600 3652 2338
3.3X6.5 2700 3015 1814 3080 3961 2532
3.3X10.6 4403 5257 3067 5020 6907 4281
4.5X9.0 6554 5747 4752 7470 7551 6633
4.5X12 8739 7984 6473 9960 10490 9037
Note:The weight is the fender body weight(without tires and chain),with weight error of ±10% and counterforce error of ±10%

Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS 5

Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS 6

Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS 7

Rubber Dock Yokohama Boat Marine Pneumatic Rubber Fender For STS 8



1), Q:What is the minimum order?
A:Our company mainly deals with wholesale order,but if you insist on buying one set,or you just need one set,we would be very likely to make the MOQ as one set for you.
2), Q:What payment method does your company accept?
A:T/T,Western Union,Money Gram or Others.
30% Deposit in advance,70% balance when the delivery.
3), Q:What is your packing and shipping?
A: Packing: Neutral Carton,Wooden Case or Others,according to the products and quantity.
Shipping: Air shipping or Sea shipping.If sea shipping,you need to tell us your destination port first.
4), Q:Could you give some discount?
A:We will surely try our best to help you get the products with the best price and good service at the same time.

Why Choose Us

A. Short Delivery Time If Clients Need Urgently
B. As we have Mature and Professional Sales Team
C. Certified by the high quality products
D.A variety of specifications optional, match for a variety of clients
E.Competitive price, high cost performance products
