Florescence Ship Landing Ship Launching Airbag With BV Certificate

Certification
China Qingdao Florescence Marine Supply Co., LTD. certification
China Qingdao Florescence Marine Supply Co., LTD. certification
I'm Online Chat Now

Florescence Ship Landing Ship Launching Airbag With BV Certificate

Florescence Ship Landing Ship Launching Airbag With BV Certificate
Florescence Ship Landing Ship Launching Airbag With BV Certificate
Florescence Ship Landing Ship Launching Airbag With BV Certificate Florescence Ship Landing Ship Launching Airbag With BV Certificate Florescence Ship Landing Ship Launching Airbag With BV Certificate Florescence Ship Landing Ship Launching Airbag With BV Certificate Florescence Ship Landing Ship Launching Airbag With BV Certificate

Large Image :  Florescence Ship Landing Ship Launching Airbag With BV Certificate

Product Details:
Place of Origin: CHINA
Brand Name: FLORESCENCE
Certification: ISO, BV, CCS, RS, IRS
Model Number: FL-SJY903
Payment & Shipping Terms:
Minimum Order Quantity: 1 PIECE
Price: USD500
Packaging Details: Pallet

Florescence Ship Landing Ship Launching Airbag With BV Certificate

Description
Product Name: Florescence Ship Launching And Landing Airbag With BV Certificate Size: D1.5L15m 8layers
Material: Natural Rubber Application: Ship Launching, Docking, Lifting, Salvage, Etc
Certificate: ISO, BV, CCS, RS, IRS Service Life: 6-8 Years
MOQ: 1 PIECE
High Light:

Florescence Ship Launching Airbag

,

BV Certified Ship Launching Airbag

,

D1.5L15m Marine Ship Airbag

 Florescence Ship Launching And Landing Airbag With BV Certificate

Overview of ship launching airbags

1. Qingdao Florescence specializes in the production of ship rubber airbags since 1992.

2. Rubber airbags use the best materials (Thailand natural rubber RSS3) and can reuse for 6-8years without misuse.

3. Our factory paid attention on product quality for over 30 years to make sure our customers use well.

4. Wear resistance and anti aging airbag with ISO, CCS, BV, IRS, RS, etc certificate.

5. Need no more than air compressors, winches and ropes. Much cheaper and more portable than other methods.

6. We support customer worldwide, such as America, Philippines, Indonesia, UAE, Saudi Arabia, etc.

Florescence Ship Landing Ship Launching Airbag With BV Certificate 0Florescence Ship Landing Ship Launching Airbag With BV Certificate 1



Material and accessories of inflatable rubber boat airbags

An inflatable rubber boat airbag is to be constructed of an outer rubber layer, one or more synthetic-tyre-cord layers, and an inner rubber layer. The arrangement of synthetic-tyre-cord reinforcement layers is shown in the picture below, all materials shall be vulcanized firmly.

Florescence Ship Landing Ship Launching Airbag With BV Certificate 2



How to choose airbag size?

Before to provide suitable airbag size and quantity for your ship, please provide below information:
1.Ship length,width and weight.
2.Type of ground ship is built on? (Dirt, concrete, etc.)
3.Type of ship?
4.Depth in meters of the water where the ship first enters the water?
5.What's the angle degree of slipway? (Land, not under water)
6.Please provide the low/high tide schedule at site.
7.The working height? (The block stand height under the ship)
8.Distance from bottom of propeller to the water level?
9.Distance from back of ship (in dry dock) to the water entry point?
*If possible, please provide photos of the launch area.

Florescence Ship Landing Ship Launching Airbag With BV Certificate 3Florescence Ship Landing Ship Launching Airbag With BV Certificate 4



Type D=0.8m D=1.0m D=1.2m D=1.5m D=1.8m D=2.0m
3layers 0.13MPa 0.10MPa 0.09MPa 0.07MPa 0.06MPa 0.05MPa
4layers 0.17MPa 0.13MPa 0.11MPa 0.09MPa 0.08MPa 0.07MPa
5layers 0.21MPa 0.17MPa 0.14MPa 0.11MPa 0.09MPa 0.08MPa
6layers 0.25MPa 0.20MPa 0.17MPa 0.13MPa 0.11MPa 0.10MPa
7layers 0.29MPa 0.23MPa 0.20MPa 0.15MPa 0.13MPa 0.12MPa
8layers 0.33MPa 0.26MPa 0.23MPa 0.17MPa 0.15MPa 0.14MPa



Ship launching procedure

Procedure of Launch a ship by rubber airbags
1.Pre launch preparation work for shipyard
Slipway Enhancement
Water survey
Ground anchor
Seal thruster holes if there are.
2.Basic equipment needed for ship launching
Rigging equipment:Winch,Pulley,Swivel,Lug,Shackle,Wire sling,Ground Anchor
Inflate equipment: Air Compressor, Inflating Pipe
Airbag moving equipment: Forklift, mobile crane
3.Crew preparation
4.Rigging Arrangements
5.Lifting the blocks
6.Move vessel forward
7.Vessel Launching



Florescence Ship Landing Ship Launching Airbag With BV Certificate 5Florescence Ship Landing Ship Launching Airbag With BV Certificate 6

Advantages of ship rubber airbag

1. Different airbag size stock available, quick delivery
2. Provide repair kit and on site instruction
3. Long time service life can be reused many times
4. Wear resistance and anti aging
5. Good raw material and cord fabric
6. Do no harm to the environment. Time & money saving
7. Need no more than air compressors, winches and ropes
8. Marine airbags are much cheaper and portable than other methods



Florescence Ship Landing Ship Launching Airbag With BV Certificate 7Florescence Ship Landing Ship Launching Airbag With BV Certificate 8



Storage of ship rubber airbag

1.Ship rubber airbag should be maintained in a dry ventilated room and be protected from light.
2.Ship rubber airbag should be in a relaxed condition free from tension, compression or other deformation.
3.Ship rubber airbag should be kept away from any heat source.
4.Ship rubber airbag should be protected from acids, alkalis, oils or organic solvents.

Florescence Ship Landing Ship Launching Airbag With BV Certificate 9Florescence Ship Landing Ship Launching Airbag With BV Certificate 10

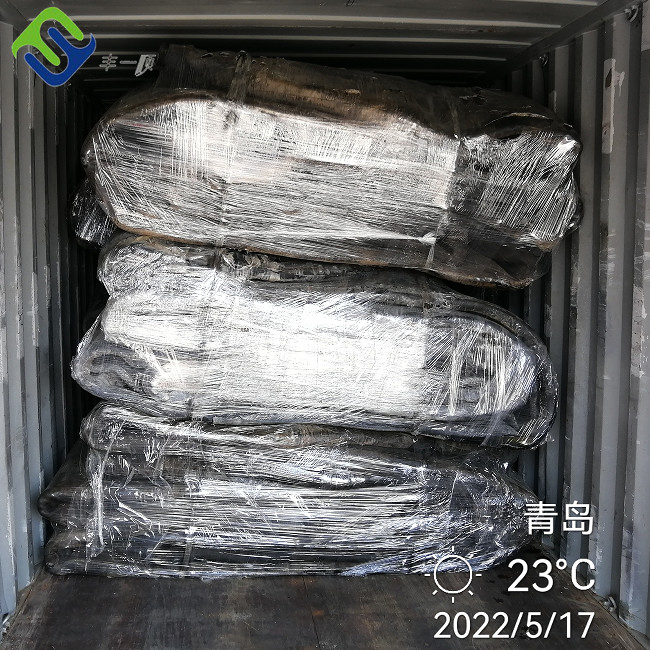

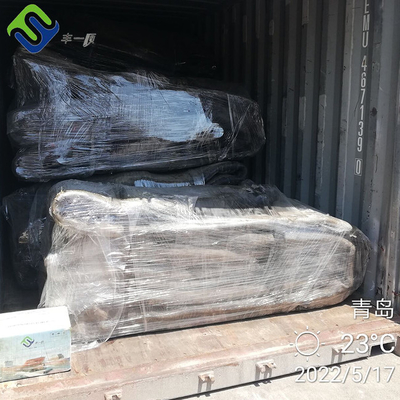

Packing and delivery

Florescence Ship Landing Ship Launching Airbag With BV Certificate 11Florescence Ship Landing Ship Launching Airbag With BV Certificate 12

Florescence Ship Landing Ship Launching Airbag With BV Certificate 13Florescence Ship Landing Ship Launching Airbag With BV Certificate 14

Florescence Ship Landing Ship Launching Airbag With BV Certificate 15Florescence Ship Landing Ship Launching Airbag With BV Certificate 16
