Product Details:
|
| Material: | Rubber | Color: | Black |
|---|---|---|---|
| Diamter: | 0.6-4.5m | Length: | 1-9m |
| Name: | Pneumatic Rubber Fender | Application: | Ship To Ship& Ship To Dock |
| High Light: | BV Approved Pneumatic Rubber Fender,Ship Berthing Pneumatic Rubber Fender,Dia 4.5m Pneumatic Rubber Fender |
||
Construction of Marine rubber Dock Fender
The basic body construction of rubber dock fender consists of an outer layer made of rubber, cord layers and inner rubber layer vulcanised together. End flanges are available at both ends for air charging purposes. The outer rubber layer is made of strong rubber material to withstand external forces and protect the other layers from abrasion as well as hard usage on bad weather conditions.
Shenxing cord layers are innovatively designed at ideal angles to evenly distribute the stress acting upon the fender. Integrative twine technology and polyamide fiber with high tensile stress are applied to provide strength and hold the internal pressure during usage. This helps distribute the stress uniformly, maintaining the energy absorption and increasing its efficiency. The inner layer is tasked to seal the air inside, minimising the air leakage using a material with airtight qualities.
Why Choose our pneumatic rubber fenders?
1. Qingdao Florescence is the first one and professional manufacturer of pneumatic rubber fenders with more than 30 years of developing and production experience
2. Credible company to make pneumatic rubber fenders with optimized rubber material, enough sizes and enough layers
3. ISO certificated with a number of patents on products
4. Pneumatic rubber fenders have been inspected and approved by Third-Party like CCS, BV, SGS, V-Trust etc with excellent performance of high energy absorption and low force reaction and airtightness.
5. Satisfying and timely after-sale service: In case of any quality claims during the warranty period, we will carry out the Three Guarantees for repair, replacement and compensation of faulty pneumatic rubber fenders.
If the yokohama type pneumatic fenders 3.3m x 6.5m caters to your requirement, welcome to buy or wholesale with our factory. As one of the leading manufacturers and suppliers in China, we will offer you the most competitive price and the best service.
The purpose of the pneumatic rubber fender
1.Ship to ship berthing
Accompanied by a large ship, the risk of two ship berthing at sea is also increased, especially when the weather changes, accompanied by wind and waves.Adopt pneumatic fender as side of the buffer, not only make heavy berthing becomes easy, and improve the efficiency of the transportation operations. Pneumatic fender is mainly used for: Ice in the Antarctic ocean fishing ships, large oil tanker berthing.
2. Used for terminal dock protection
Of the ship is very large, the cause of berthing impact energy have multiplied.Inflatable rubber fender because of its high energy absorption and low reaction force features are widely used.
| Feature | Application |
| 1.Easy to install and maintain | 1.Oil and gas tankers |
| 2.Low reaction and hull pressure | 2.Fast ferries and aluminium vessels |
| 3.More suitable for small and large tidal ranges | 3.LPG vessels, ocean platforms, large docks |
| 3.More suitable for small and large tidal ranges | 4.Harbors and wharf |

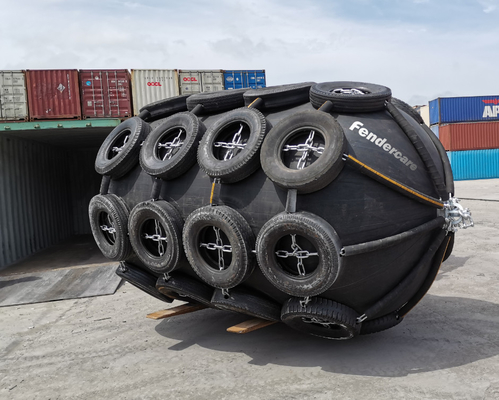

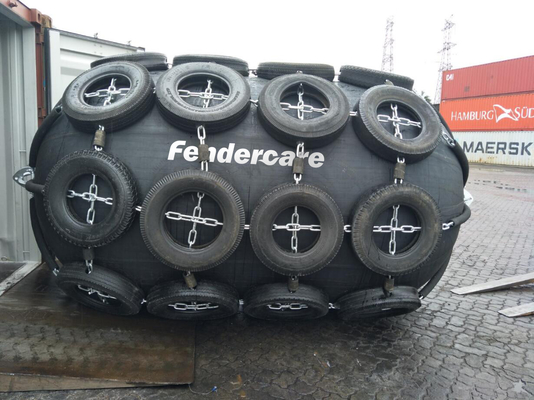

Net-type fenders are covered with a chain net, wire net or fiber net for fenders. Usually these nets have used-tires together with rubber sleeves for additional protection, except fiber net which has only rubber sleeves. Chain nets last longer against corrosion, while wire nets are light and more easily repaired.
Sling-type fenders have an attachment eye on each end for lifting and installation. Handling of sling type fenders is easy due to their lightweight.
Pneumatic rubber fender use matters needing attention
1. Pneumatic pressure control in±5% of the rated pressure
2. Test pressure normally, add pressure in a timely manner
3. Avoid contact with sharp objects
4. when Long time not need, should wash to dry, filled with right amount of compressed air, placed in a cool dry ventilated place.
5. Storage place away from heat, acid and alkali, oil and grease
6. when store, shall not be folded and piled up
Our advantage
1 Compliance with ISO 17357:2002
2 More safety and reliability
3 Lower mooring forces
4 Adaptable to the tide
5 Low maintenance cost
6 Low reaction force and hull pressure
7 Most cost competitive system
8 Simple and low cosy installation
9 Various optional fitting
10 Advange against shearing force
Service
1.Inquiry will be replied within 24 hours.
2.Professional manufacturer with 12 years experience
3.Lifelong after-sale service.
4.After Sale Service:
All products will undergo strict quality inspection.
All products will be well packed before shipping.
All our products have 1 year warranty, And we sure the product will be free from maintenance within warranty period.
FAQ
1.Q: Are you factory?
A: Yes,we are.
2.Q:What's your MOQ?
A:1 PCS
3.Q:What's your payment?
A:T/T 30% deposit before production,70% balance at sight of B/L copy.
4.Q:What's your delivery time?
A:Within 15 days after payment.
