|Product:||Marine Ship Inflatable Pneumatic Rubber Fender For Dock Berthing||Material:||Natural Rubber|
|Length:||0.6-9m||Pressure:||50Kpa Or 80Kpa|
|Application:||STS, STD, STB||Service Life:||6-8 Years|
|Warranty:||2 Years||Certificate:||ISO, BV, CCS, RS, IRS|
Dock Berthing Pneumatic Rubber Fender,
L3.5m Ship Pneumatic Rubber Fender,
80Kpa Marine Inflatable Fender
Description of inflatable pneumatic rubber fender
Florescence pneumatic rubber fender for ship has the advantages of high energy absorption and reaction force, low cost, long service life, simple installation and maintenance, etc. It is usually used in ship to ship, ship to wharf for barge and docking, which is a new generation product of fender of ships and is popular in the world.
Due to its self-floating characteristics, this floating pneumatic rubber fender for ship to ship operation is also particularly suitable for installation in docks where the tide level varies greatly. Among them, the filled rubber fender is especially suitable for applications in harsh environments, such as offshore drilling platforms, due to its advantages of maintenance-free and long service life.
Pneumatic fenders are constructed of three vulcanized layers each providing an important function in the construction and lifespan of the fender. The three layers are (1) the inner rubber layer (2) the cord layers of reinforcement and (3) the outer rubber layer.
The outer rubber layer has a special compound that provides extra tensile and tear strength to protect the fender from harsh weather conditions and heavy usage whilst the inner rubber layer is specifically designed to seal the air inside and to prevent any leakage much like the inner tube of a tire. The reinforcement layer has cross hatched synthetic tire cord designed to evenly distribute the stress.
The dimensions of the pneumatic floating rubber fenders are:
- The diameters vary from 0.3 up to 4.5 meters.
- The lengths vary from 0.6 up to 9.0 meters.
Specification of pneumatic rubber fender
|Vessel Tonnage||Size (D*L) mm||Recommend Vessel|
|200||1000*1500~1200*2000||Fishing Vessel, Tugboat|
|300-500||1200*2000~1500*2500||Fishing Vessel, Tugboat|
|1000||1500*2500~1500*3000||Tugboat, Transport Ship|
|3000||2000*3000~2000*3500||Ocean Trawler, Transport Ship|
Different types of floating rubber fender
1. Chain and type net type pneumatic fender

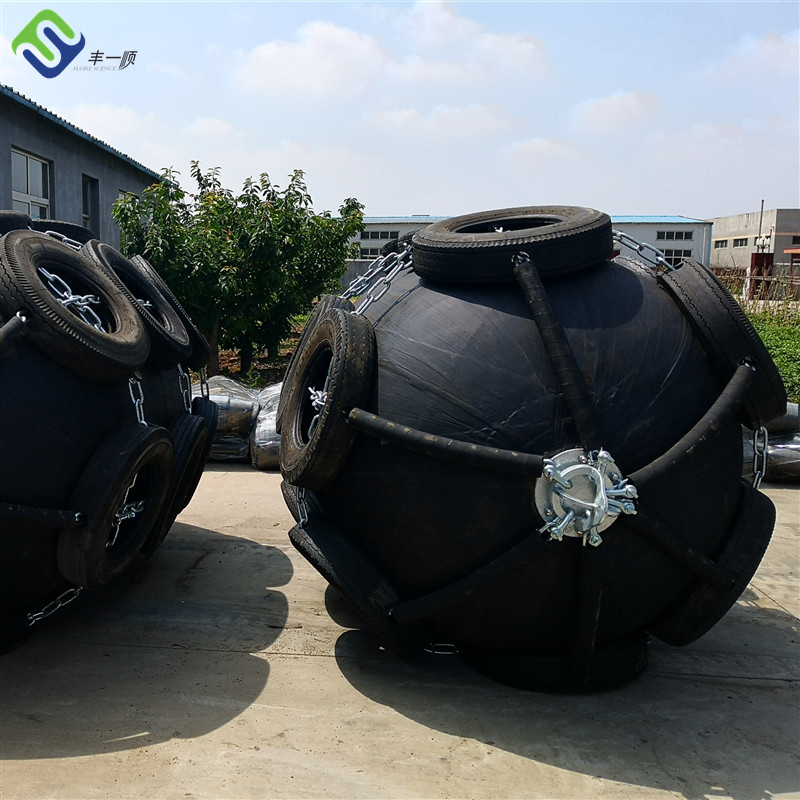

Pneumatic rubber fender is covered and protected by steel chain with rubber sleeves and tires.
2. Sling type pneumatic fender
Pneumatic rubber fender is not protected by tires-net. It’s simple and light weight.
1.Vast energy absorption with low unit surface pressure
2.Easy to install and low maintenance requirement
3.Good performance on inclined berthing
4.Low hull pressures
Application of marine fender
Oil and gas tankers
Fast ferries and aluminium vessels
Temporary and permanent installations
Rapid response and emergencies
In ports with extreme tidal variations
Fishing vessel, transport ship and ocean trawler
Use attention of dock pneumatic rubber fender
*Frequently check whether the fender body is damaged and whether the pressure is normal,and the valve core must be replaced every six moths
*The steel wire should wrap the rubber pipe,when trying steel wire to pneumatic rubber fender in case the fender is stabbed
*The surface or subject next to the pneumatic rubber fender can’t be hard and sharp-pointed in case the pneumatic rubber fender is stabbed
*The accessories and jigs nuts can’t be loose when testing the internal pressure
*The rope net should be reliable,the steel wire used for hanging metal parts and the hook link can’t be tied in disorder.
