Product Details:
|
| Product Name: | Marine Ship Launching Rubber Balloons Docking Floating Airbag | Material: | Natural Rubber |
|---|---|---|---|
| Size: | D1.5L12m 8layers | Diameter: | 0.6-2.8m |
| Length: | 5-24m | Layers: | 3-10 Layers |
| Certificate: | ISO, BV, CCS, RS, IRS, ABS | Warranty: | 2 Years |
| Application: | Launching, Docking, Lifting, Salvage | ||
| High Light: | Ship Launching Rubber Balloons,Floating Ship Launching Rubber Balloons,Docking Floating Marine Rubber Airbag |
||

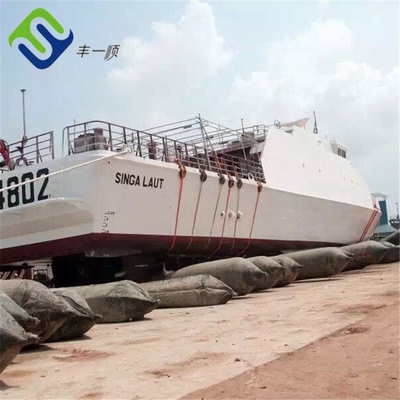

Overview of marine ship rubber airbag
Rubber airbag has good aging resistance performance, long service life features, rubber airbag using synthetic rubber, natural rubber and fibre strengthen layer is made after sulfide. Has very good resistance to bilge strength and elastic, flexibility, rubber airbag can satisfy various working conditions.
Rubber airbag applicable temperature in - 10 Degrees Celsius ~ + 90 Degrees Celsius, within the scope of the rubber airbag material won't change.
Rubber airbags safety precaution:
● Over pressure Control:
Strictly control the operating pressure, over pressure is forbidden.
● The Landing Slipway Requirements:
The landing ground should be ground or cement concrete, according the tonnage of different ships.
● Avoid Sharp Objects:
Make sure no sharp objects and make sure the smooth and clean ground during using them in case of break of airbag.
● Avoid Distortion And Overweight
Avoid distortion in the length direction during rolling and avoid overweight load after gas charging.
How to choose suitable airbag size and quantity:
Our factory can manufacture ship rubber airbag diameter from 0.6m up to 2.8m, effective length from 5.0m up to 24.0m, and layers from 3 to 12 layers.
If you are not sure about the airbag size need, please let me know below information, then we will recommend you a most suitable airbag size and quantity.
1. What's the application of airbags? For ship launching, landing, lifting or salvage?
2. Your target ships information (ships length, width, weight, or range).
3. The ship block height.
4. The slipway situation and angle.
Size Range: (airbag size depend on ship size)
| Diameter (D): | From 0.6m to 2.8m |
| Effective Length (EL): | From 5.0m to 24.0m |
| Total Length (TL): | From 7.0m to 27.0m |
| Standard Number of Layers: | Usually 3-10 layers |
Ship airbags guaranteed working pressure:
| Type | D=0.8m | D=1.0m | D=1.2m | D=1.5m | D=1.8m | D=2.0m |
| FL3 layers | 0.13Mpa | 0.10Mpa | 0.09Mpa | 0.07Mpa | 0.06Mpa | 0.05Mpa |
| FL4 layers | 0.17Mpa | 0.13Mpa | 0.11Mpa | 0.09Mpa | 0.08Mpa | 0.07Mpa |
| FL5 layers | 0.21Mpa | 0.17Mpa | 0.14Mpa | 0.11Mpa | 0.09Mpa | 0.08Mpa |
| FL6 layers | 0.25Mpa | 0.20Mpa | 0.17Mpa | 0.13Mpa | 0.11Mpa | 0.10Mpa |
| FL7 layers | 0.29Mpa | 0.23Mpa | 0.20Mpa | 0.15Mpa | 0.13Mpa | 0.12Mpa |
| FL8 layers | 0.33Mpa | 0.26Mpa | 0.23Mpa | 0.17Mpa | 0.15Mpa | 0.14Mpa |
| FL9 layers | 0.37Mpa | 0.29Mpa | 0.26Mpa | 0.19Mpa | 0.17Mpa | 0.16Mpa |
| FL10 layers | 0.41Mpa | 0.32Mpa | 0.29Mpa | 0.21Mpa | 0.19Mpa | 0.18Mpa |
Florescence ship rubber airbag advantages:
●Different airbag size stock available, quick delivery
●Provide repair kit and on site instruction
●Long time service life can be reused many times
●Wear resistance and anti aging
●Good raw material and cord fabric
●Do no harm to the environment. Time & money saving
●Need no more than air compressors, winches and ropes
●Marine airbags are much cheaper and portable than other methods
