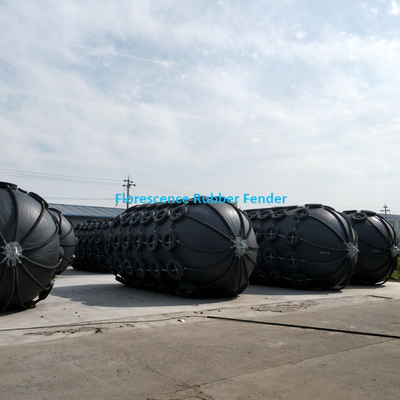

Yokohama Marine Pneumatic Rubber Fender Dock Fenders D2.0 L3.5m

Instruction of Yokohama D2.0L3.5m marine pneumatic rubber fender

Pneumatic rubber fender is installed on the dock or ship, to absorb the collision energy between the ship and the dock or ship when berthing or mooring, and to protect the ship and the dock from damage.
Pneumatic rubber fender has the advantages of low reaction force, small surface pressure and reasonable energy absorption. In berthing, the ship rolling and pitching adaptability, it will not affected by the size of the ship and is widely used for installation and maintenance convenient, especially suitable for the dock.

1. Material: Natural Rubber and Nylon Cord
2. Fittings: Tire Net, Shackle, Swivel, Chain
3.Type: CTN Type and Sling Type
4. Inner Pressure: 50 Or 80 Kpa
5. Size Range: Dia 0.5-4.5m, Len 1.0-12m
6. Certs: CCS, BV, ISO, RS, ABS, Etc

Structure of pneumatic rubber fender

1.Outer Rubber
Cover outside on the ball of rubber layer, which is used to protect skeleton material and inner rubber ball from damage of
external force.
2. Synthetic cord reinforced rubber layer
Reinforced cord rubber layer is composed of winding synthetic cord layer, it is mainly used for maintain the internal air
pressure.
3. Inner Rubber
On the ball inside the rubber layer, which is used to prevent air leakage and control the ball pressure.
4. End Flange
The metal parts at both ends of fender, which can be fitted with charging valve and safety valve.

Features of pneumatic rubber fender

1. High energy absorption with a low reaction force
2. Light weight, portable and floatable, can be installed and replaced easily
3. Heavy duty and long service life-over 10 years
4. Supplied as sling type (body only) or with chain and tire net for protection of the fender body
5. Suitable for locations with large and small tidal differences

Application of pneumatic rubber fender

1. Offshore platform
2. Oil and gas tankers
3. Fast ferries and aluminium vessels
4. Temporary and permanent installations
5. Rapid response and emergencies
6. In ports with extreme tidal variations
7. Fishing vessel, transport ship and ocean trawler

Maintenance of pneumatic rubber fender

1. Pneumatic pressure control in±5% of the rated pressure2. Test pressure normally, add pressure in a timely manner
3. Avoid contact with sharp objects
4.When Long time not need, should wash to dry, filled with right amount of compressed air, placed in a cool dry ventilated
place.
5.Storage place away from heat, acid and alkali, oil and grease
6.When store floating fender, shall not be folded and piled up
