Product Details:
|
| Material: | Natural Rubber | Application: | STS STD |
|---|---|---|---|
| Shape: | Round | Thickness: | Depend On Size |
| Warranty Period: | 24 Months | Product Name: | Yokohama Fenders |
| High Light: | Pneumatic Rubber Fender,Yokohama Pneumatic Fender,Ship To Quay Yokohama Pneumatic Fender |
||

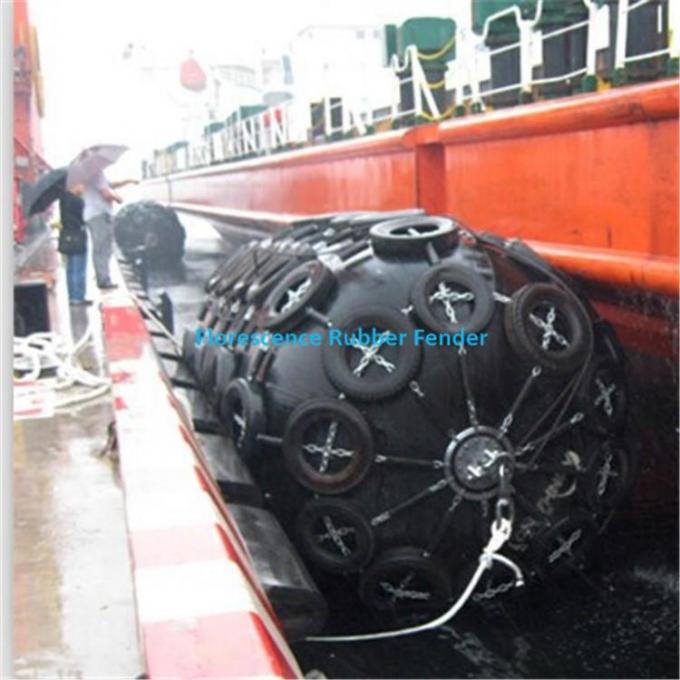

Introduction of floating pneumatic fender
Floating pneumatic fenders have been used for around 50 years.It is the leading anti-collision device for ship use in the world. The compressed air filled rubber fender is used as a protective medium for ship-to-ship, ship to quay and ship-to -berthing operation.
Floating pneumatic fenders can be delivered in different sizes. It has chain and tyre net(CTN) type which is usually recommend to protect the fender body, but sling type or body only is also available.
Structure of floating pneumatic fender
Floating pneumatic fender consists of an outer rubber, reinforcement synthetic-tyre-cord layer, and inner rubber, vulcanized together firmly.
1. The outer rubbers are used to protect the cord layers and inner rubber from abrasion
2. The reinforcement synthetic-tyre-cord layer strong enough to maintain the internal air pressure.
3. The inner rubber layer seals air inside the fender.
4. Fenders diameter larger than 2500mm will be equipped with safety valve.
Specification of floating pneumatic fender
| D*L (mm) | Initial pneumatic pressure 50KPa | ||
| Body weight(Kg) | R(KN) | GEA(KJ) | |
| 500*1000 | 25 | 64 | 6 |
| 600*1000 | 32 | 74 | 8 |
| 1000*1500 | 80 | 182 | 32 |
| 1000*2000 | 100 | 257 | 45 |
| 1200*2000 | 120 | 297 | 63 |
| 1350*2500 | 165 | 427 | 102 |
| 1500*3000 | 315 | 597 | 153 |
| 1700*3000 | 405 | 639 | 191 |
| 2000*3500 | 590 | 875 | 308 |
| 2500*4000 | 1050 | 1381 | 663 |
| 2500*5500 | 1333 | 2019 | 943 |
| 3000*5000 | 1880 | 2104 | 1210 |
| 3000*6000 | 2160 | 1583 | 1485 |
| 3300*4500 | 2020 | 1884 | 1175 |
| 3300*6500 | 2700 | 3015 | 1814 |
Production process of floating pneumatic fender
Floating pneumatic fender use matters needing attention
1 Pneumatic pressure control in±5% of the rated pressure
2 Test pressure normally, add pressure in a timely manner
3 Avoid contact with sharp objects
4 When Long time not need, should wash to dry, filled with right amount of compressed air, placed in a cool dry ventilated place.
5 Storage place away from heat, acid and alkali, oil and grease
6 When store, shall not be folded and piled up
Application of floating pneumatic fender
Ship to ship transfers at seas.
Berthing operation that vessels to berth at dock/jetty.
Oil & gas tankers
Fast ferries & aluminum vessels
Temporary and permanent installations
Rapid response and emergencies
Liquid cargo and naval defense vessels
The storage of floating pneumatic fender
1.Wash the surface of the fender,dry up and fill in sufficient right amount of compressed air to lay them in a cool.dry and well-ventilated place.
2.The storage place should be away from heat.
3.Keep fender away from acid,alkali,grease and organic solvents
4.Fenders can't be piled up and heavy items when fenders are not used.
