Product Details:
|
| Material: | Natural Rubber:RSS3,imported From Thailand | Cord Fabric: | 1880D2,100% Raw Silk |
|---|---|---|---|
| Standard: | CB/T-3795,CB/T-3837,ISO14409 | Thickness: | More Than 5.5mm |
| Layer: | 3-12 Layers | Working Pressure: | 0.17-0.33Mpa |
| Highlight: | 5.5mm Marine Rubber Airbags,pneumatic air bags,Inflatable Marine Rubber Airbags |
||

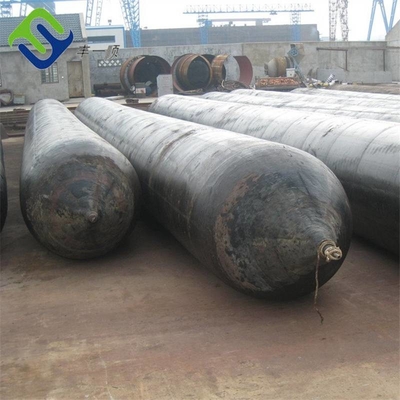

Used For Launching Ships At Malaysia With Inflatable Marine Rubber Airbag
Advantages of Florescence marine rubber airbag
1. Big carrying capacity
2. High capacity against compression and twisting
3. New design of anti-bursting construction at the end
4. Optimized structural layout
5. Durable aging resistance and anti-wear characteristic
6. Higher flexibility and damping capacity
Standard specifications of Florescence inflatable rubber airbag
1> Diameter (D): From 0.3m to 2.2 m.
2> Effective Length (EL): From 6m to24m.
3> Total Length (TL): From 7m to28m.
4> Other specification of ship launching airbags also available upon customer’s request
Working pressure of Florescence marine rubber airbag:
| Diameter | Layer | Work pressure | Diameter | Layer | Work pressure |
| D=0.8M | 3 | 0.13 Mpa | D=1.5M | 3 | 0.07 Mpa |
| 4 | 0.17 Mpa | 4 | 0.09 Mpa | ||
| 5 | 0.21 Mpa | 5 | 0.11 Mpa | ||
| 6 | 0.25 Mpa | 6 | 0.13 Mpa | ||
| 7 | 0.30 Mpa | 7 | 0.15 Mpa | ||
| 8 | 0.33 Mpa | 8 | 0.18 Mpa | ||
| D=1.0M | 3 | 0.10 Mpa | D=1.8M | 3 | 0.06 Mpa |
| 4 | 0.13 Mpa | 4 | 0.08 Mpa | ||
| 5 | 0.17 Mpa | 5 | 0.09 Mpa | ||
| 6 | 0.20 Mpa | 6 | 0.11 Mpa | ||
| 7 | 0.25 Mpa | 7 | 0.13 Mpa | ||
| 8 | 0.28 Mpa | 8 | 0.15 Mpa | ||
| D=1.2M | 3 | 0.09 Mpa | D=2.0M | 3 | 0.05 Mpa |
| 4 | 0.11 Mpa | 4 | 0.07 Mpa | ||
| 5 | 0.14 Mpa | 5 | 0.08 Mpa | ||
| 6 | 0.17 Mpa | 6 | 0.10 Mpa | ||
| 7 | 0.20 Mpa | 7 | 0.12 Mpa | ||
| 8 | 0.23 Mpa | 8 |
0.14 Mpa |
Our service
Pre-sale service:Every product will be inspected before shipment,guarantee the quality
On-sale service:Choose suitable package and transportation,gurantee the goods reach to customers safely,save freight for customers
After-sale service:One-to-one VIP service
We solemn promise:
1)Contact with customers statedly
2)Guide the installation and using of products
3)Provide maintenance manual of related products
4)Provide mending material for products
FAQ
Q1: What’s the material of your products?
A: Our raw material is natural rubber, and rubber-dipped nylon cord fabric
Q2: Are you factory or trading company?
A: Qingdao Florescence Co.,Ltd is the company and factory,located in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which is convenient for transportation.
Q3: Can you do OEM?
A: Yes,we can do.As long as receive your request,we could produce accordingly.
Q4: What about your warranty time?
A: Our warranty period is 24 months.During this time,any problems about products from our factory,we solemn promise to change and repair them for free;if problems from customers’ improper operating,we could provide free guidance and repair materials
