Product Details:
|
| Warranty Period: | 24 Months | Design Using Life: | 10 Years |
|---|---|---|---|
| Thickness: | More Than 5.5mm | Layer: | 3-12 Layers |
| Working Pressure: | 0.17-0.33Mpa | ||
| High Light: | Vessel Launching Marine Airbag,pneumatic lifting bags,2.2m Marine Rubber Airbag |
||
Inflatable Marine Rubber Airbag With Customized Size For Ship Launching

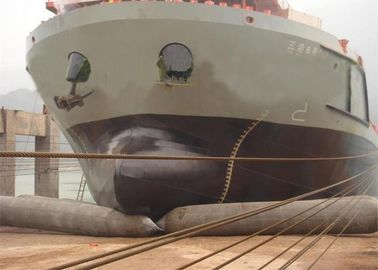

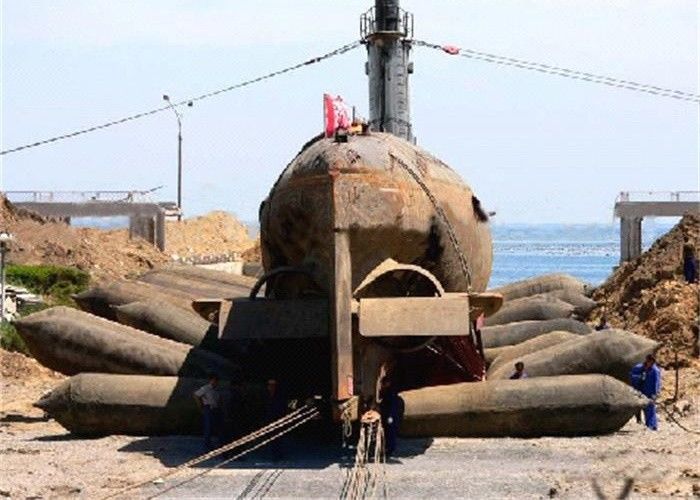

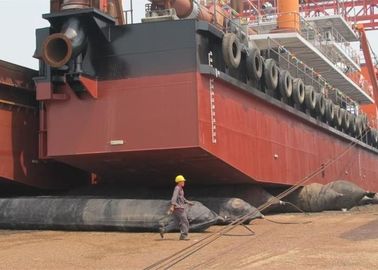

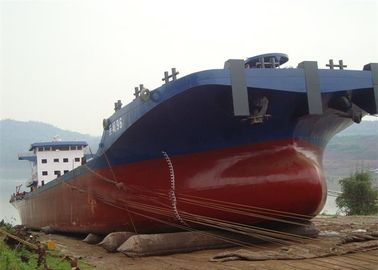

Ship launching or upgrading relying on Florescence marine airbag is a innovative technology having utmost developmental prospect in shipbuilding.Ship launching airbags overcomes the disadvantage of fixed launching track by which the productive abilities of shipbuilding and ship repair were limited in the small and medium sized shipyards. Now it has become a flexible launching technology full of mobility, having advantages in saving effort,saving time,saving work load, saving investment,flexibility,safety, reliability, outstanding comprehensive economy benefit, flexible, safe, reliable, and outstanding benefit, etc. The launching technology of apply Florescence marine airbag to the launching and landing of ships overcomes the restrictions of traditional slide board technology which is commonly used in building small or medium size ships.
Advantages of Florescence marine rubber airbag
1. Big carrying capacity
2. High capacity against compression and twisting
3. Durable aging resistance and anti-wear characteristic
Standard specifications of Florescence inflatable rubber airbag
1> Diameter (D): From 0.3m to 2.2 m.
2> Effective Length (EL): From 6m to24m.
3> Total Length (TL): From 7m to28m.
4> Other specification of ship launching airbags also available upon customer’s request
Working pressure of Florescence marine rubber airbag:
| Diameter | Layer | Work pressure | Diameter | Layer | Work pressure |
| D=0.8M | 3 | 0.13 Mpa | D=1.5M | 3 | 0.07 Mpa |
| 4 | 0.17 Mpa | 4 | 0.09 Mpa | ||
| 5 | 0.21 Mpa | 5 | 0.11 Mpa | ||
| 6 | 0.25 Mpa | 6 | 0.13 Mpa | ||
| 7 | 0.30 Mpa | 7 | 0.15 Mpa | ||
| 8 | 0.33 Mpa | 8 | 0.18 Mpa | ||
| D=1.0M | 3 | 0.10 Mpa | D=1.8M | 3 | 0.06 Mpa |
| 4 | 0.13 Mpa | 4 | 0.08 Mpa | ||
| 5 | 0.17 Mpa | 5 | 0.09 Mpa | ||
| 6 | 0.20 Mpa | 6 | 0.11 Mpa | ||
| 7 | 0.25 Mpa | 7 | 0.13 Mpa | ||
| 8 | 0.28 Mpa | 8 | 0.15 Mpa | ||
| D=1.2M | 3 | 0.09 Mpa | D=2.0M | 3 | 0.05 Mpa |
| 4 | 0.11 Mpa | 4 | 0.07 Mpa | ||
| 5 | 0.14 Mpa | 5 | 0.08 Mpa | ||
| 6 | 0.17 Mpa | 6 | 0.10 Mpa | ||
| 7 | 0.20 Mpa | 7 | 0.12 Mpa | ||
| 8 | 0.23 Mpa | 8 | 0.14 Mpa |
Our service
Pre-sale service:Every product will be inspected before shipment,guarantee the quality
On-sale service:Choose suitable package and transportation,gurantee the goods reach to customers safely,save freight for customers
After-sale service:One-to-one VIP service
We solemn promise:
1) Contact with customers statedly
2) Guide the installation and using of products
3) Provide maintenance manual of related products
4) Provide mending material for products
