Product Details:
|
Diameter: | From 0.3-4.5m | Length: | From 0.5-9.0m |
---|---|---|---|
Color: | Colorful As Red,orange,gray,white,blue And So On | Warranty Period: | 24 Months |
Design Using Life: | Usually 10 Years | Certificate: | ISO9001:2008,CCS,ABS,DNV,LR,BV |
High Light: | foam filled fenders,large round boat fenders,Polyurethane Foam Filled Fender |

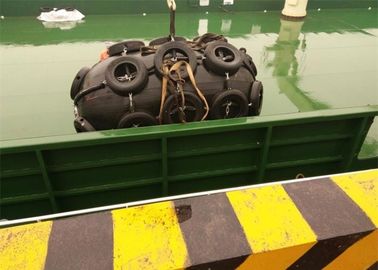

Colorful Polyurethane Marine Floating Fender Ship And Boat Eva Fender
FLORESCENCE polyurethane floating fender is also a kind of compressed fender which builds outer protective layer with polyurethane, materials and adopts polyurethane foaming material or plastic foaming as buffer medium;the destructive effects on docks and ships will be reduced by the compression to absorb the impact energy from ships in the course of using polyurethane floating fender.
FLORESCENCE manufactures the FLORESCENCE netless style foam filled marine fenders as the domestic standard in the industry and meets the most stringent quality and performance demands providing tough heavy-duty fendering systems for harbor, offshore and ship-to-ship applications. The widely used projects proven our foam filled fender is your best guarantee.
FL EVA fender advantages and features:
* Use flange coupling and easy to install ,move and use .
* High energy absorption and low reaction force
* No explosion risk,safety and reliability
* Many different sizes and shape available
* Tough, nylon filament reinforced polyurethane skin
* Unsinkable design and easy installation
* Low maintenance,burst resistance,and reliable performance
* Light but solid
Characteristic of FL foam filled EVA fender:
* With the general compression fender, solid foam filled polyurethane fender with floating performance, The installation position is not subject to tidal influence
* Compared with pneumatic fenders, has better energy absorption performance, and low reaction performance
* Compared with pneumatic fenders, does not require the use of check, inflatable, with maintenance-free; no explosion risk, with safety
* Product specifications according to the needs of manufacturing, in the polyurethane fender in the specifications of the largest
FL marine fender's range of use:
* The marine terminal fender
* Suitable for gravity and London Wharf,especially the large tidal range of the dock
* Particularly applicable to the ship by ship fender, floating fender more adaptability
* As the pier fender, protection of bridge piers,ships from damage;
* Ship-to-ship transfers,Navy berths,Oil and gas tankers,General cargo,Bulk cargo
* Ferries ,Container vessels,Cruise ships
Technical performance of EVA fender
Specification DXL(mm) |
60% Compression Deflection |
(KG) Weight Reference |
|
(KN) Reaction Force |
(KN-M) Energy Absorption |
||
300x500 | 13 | 0.49 | 11 |
400x600 | 18 | 1.05 | 19 |
500x1000 | 38 | 2.18 | 42 |
600x1000 | 49 | 3.4 | 63 |
1000x1000 | 137 | 33 | 275 |
1000x1500 | 206 | 49 | 410 |
1000x2000 | 273 | 65 | 553 |
1200x1500 | 256 | 70 | 615 |
1200x2000 | 336 | 93 | 815 |
1500x2500 | 520 | 180 | 1550 |
1500x3000 | 626 | 217 | 1863 |
1600x3000 | 860 | 270 | 2110 |
2000x3500 | 992 | 458 | 3850 |
2000x4000 | 1120 | 506 | 4590 |
2200x4500 | 1402 | 682 | 6000 |
1. The above performance parameters measured are based on static state;
2. Above reaction force and energy absorption to tolerance of ±10%
3. Special sizes are available upon request processing;
4. Fender accessories have all been hot dip gal
