Product Details:
|
Main Material: | Polyurethane And EVA | Chain: | Hot Galvanizing Or Stainless Steel(304,312,316) |
---|---|---|---|
Diameter: | From 0.3-4.5m | Length: | From 0.5-9.0m |
Color: | Colorful As Red,orange,gray,white,blue And So On | Warranty Period: | 24 Months |
High Light: | foam filled fenders,commercial boat fenders,4.5m EVA Fender |

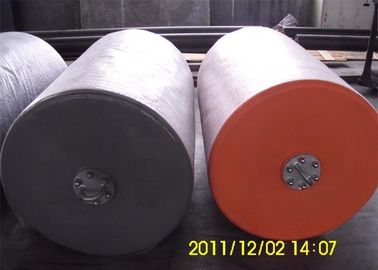

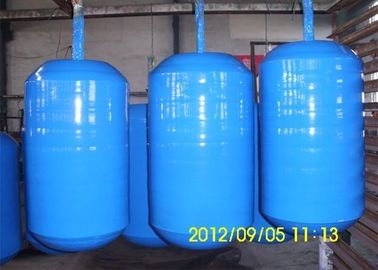

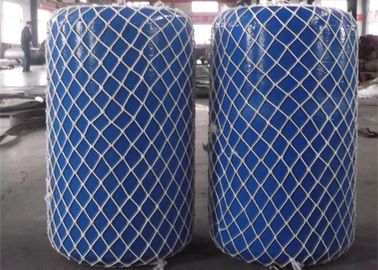

Pneumatic Marine Rubber Fender Used For Protecting Ships And Docks When Wharf
FLORESCENCE polyurethane floating fender is also a kind of compressed fender which builds outer protective layer with polyurethane, materials and adopts polyurethane foaming material or plastic foaming as buffer medium;the destructive effects on docks and ships will be reduced by the compression to absorb the impact energy from ships in the course of using polyurethane floating fender.
FL EVA fender advantages and features:
* Absorb more energy,less reverse impact on ships
* It has floating property proof against the tidal range ;
* Its bright colors can supply products in various colors as quest ;
* No air against the tidal range ; proof against corrosion
* No air inflation is needed during use with safety and maintenance-free ;
Characteristic of FL foam filled EVA fender:
* With the general compression fender, solid foam filled polyurethane fender with floating performance, The installation position is not subject to tidal influence
* Compared with pneumatic fenders, has better energy absorption performance, and low reaction performance
* Compared with pneumatic fenders, does not require the use of check, inflatable, with maintenance-free; no explosion risk, with safety
* Product specifications according to the needs of manufacturing, in the polyurethane fender in the specifications of the largest
FL marine fender's range of use:
* The marine terminal fender
* Suitable for gravity and London Wharf,especially the large tidal range of the dock
* Particularly applicable to the ship by ship fender, floating fender more adaptability
* As the pier fender, protection of bridge piers,ships from damage;
* Ship-to-ship transfers,Navy berths,Oil and gas tankers,General cargo,Bulk cargo
* Ferries ,Container vessels,Cruise ships
Technical performance of EVA fender
Specification DXL(mm) |
60% Compression Deflection |
(KG) Weight Reference |
|
(KN) Reaction Force |
(KN-M) Energy Absorption |
||
300x500 | 13 | 0.49 | 11 |
400x600 | 18 | 1.05 | 19 |
500x1000 | 38 | 2.18 | 42 |
600x1000 | 49 | 3.4 | 63 |
1000x1000 | 137 | 33 | 275 |
1000x1500 | 206 | 49 | 410 |
1000x2000 | 273 | 65 | 553 |
1200x1500 | 256 | 70 | 615 |
1200x2000 | 336 | 93 | 815 |
1500x2500 | 520 | 180 | 1550 |
1500x3000 | 626 | 217 | 1863 |
1600x3000 | 860 | 270 | 2110 |
2000x3500 | 992 | 458 | 3850 |
2000x4000 | 1120 | 506 | 4590 |
2200x4500 | 1402 | 682 | 6000 |
2500x4000 | 1415 | 778 | 6860 |
2500x5000 | 1735 | 992 | 8555 |
3000x5000 | 2060 | 1422 | 12850 |
3000x6000 | 2470 | 1702 | 15400 |
3300x6500 | 2956 | 2248 | 16690 |
4300x8500 | 19012 | 7398 | 32000 |
4500x9000 | 21520 | 6732 | 38000 |
1. The above performance parameters measured are based on static state;
2. Above reaction force and energy absorption to tolerance of ±10%
3. Special sizes are available upon request processing;
4. Fender accessories have all been hot dip gal
FAQ
Q1: What’s the material of your products?
A: Our raw material is EVA and polyurethane
Q2: Can you do OEM?
A: Yes,we can do.As long as receive your request,we could produce accordingly.
Q3: What’s your delivery time and payment terms?
A: Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.
Q4: What about your warranty time?
A: Our warranty period is 24 months.During this time,any problems about products from our factory,we solemn promise to change and repair them for free;if problems from customers’ improper operating,we could provide free guidance and repair materials
