Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags

Large Image : Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags

Product Details:

Place of Origin:	Shandong,China
Brand Name:	FLORESCENCE
Certification:	ISO9001
Model Number:	FL-SJY027

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Pallets,wooden box,suitable for transportation
Delivery Time:	5- 7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500pcs per month

Contact Now

Marine Docking Rubber Balloon Airbag Ship Launching Boat Lift Air Bags

Description

Product Name:	Marine Docking Rubber Balloon Airbag For Ship Launching	Material:	Natural Rubber
Application:	Launching, Landing, Lifting, Salvage, Docking	Structure:	Synthetic-nylon Cord Layers + Outer Rubber Layer
Size:	1.5x12m 6layers	Diameter:	0.6-2.8m
Length:	5-24m	Layers:	3-10 Layers
Service Life:	6-8 Years
Highlight:	Marine Rubber Airbag , Inflatable Marine Airbags , Marine Docking Rubber Balloon Airbag

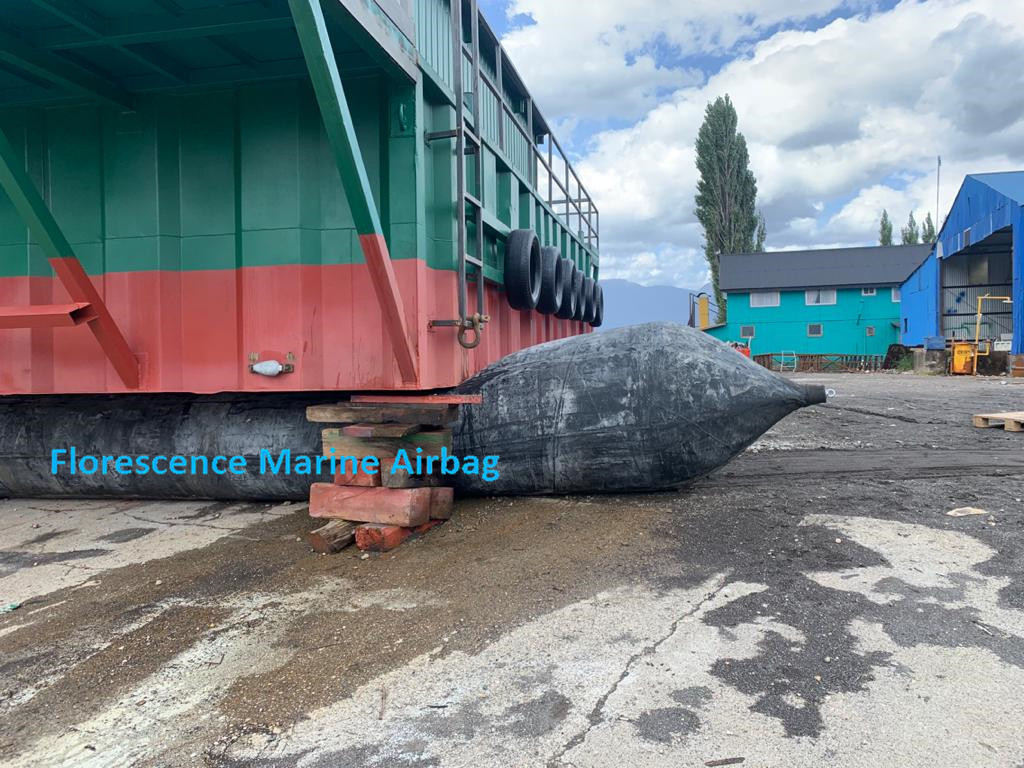

Docking rubber balloon airbag for ship lauching

Docking rubber airbags, also called rubber roller, docking air bags, ship salvage airbag, launching pontoon , now have become one convenient ship launching method in many shipyards, especially where slipways are not available.

Advantages of docking rubber airbag1)Material :Natural rubber+dipped tyre-cord fabric(enhanced type)

2)Anti-ageing rubber formula ,rubber content more than 57%;the life span is longer than other docking rubber airbags

3)Inflatable,can deflate packaging, convenient for shipping;

4)The valve/lug on both side are all anti-corrosion, not easy to rust

5)Improved air valve,high performance air tight

6)Thicken outer rubber layer ,not easy to damage
The process of ship launching by airbags1.Preparing for launching ramp way and all needed equipments.

Select and check suitable docking rubber airbag size and quantity for boat, tide up the launching ramp way, fix the ship by winch and anchors.

2.Taking out all support blocks under stern and middle one by one, and put in airbags.

3.Taking out all support blocks under the prow. Open winch and release the cable, let the ship launch to water.

4.Checking all the deckhouse after launching, retrieving all air bags at meantime.
Attentions during docking rubber airbag use for ship launching1.Docking rubber airbags must be checked if the pressure is normal before used.

2.The working pressure of docking rubber airbag when used should compare the data in the bearing pressure capacity from mustn't use excessive pressure.

3.It must clean the sharp and protrude hard objects on the ground which could touch with the rubber airbag body before the rubber airbag being used, in case it punchures the surface of the airbag.

4.The distance of the docking rubber airbags under the vessel should no less than 1.5m, the distance after compression should at least 0.8m, in case it occurs the rubber airbag overlapping phenomenon when the boat launching.

			Product name

			Docking rubber airbag

			Diameter range

			0.6-2.8m

			Effective length range

			5-24m

			Layers

			3-10 layers

Different layers of docking rubber airbag
