Payment & Shipping Terms:
|Standard:||CB/T-3795,CB/T-3837,ISO14409||Warranty Period:||24 Months|
|Design Using Life:||10 Years||Thickness:||More Than 5.5mm|
|Layer:||3-12 Layers||Working Pressure:||0.17-0.33Mpa|
inflatable buoyancy bags,
boat recovery airbags
Good Sealed Performance And Durable Inflatable Marine Salvage Airbags
Advantages of ARD marine salvage airbags
1. High capacity against compression and twisting
2. Optimized structural layout
3. Higher flexibility and damping capacity
Standard specifications of ARD inflatable rubber airbag
1> Diameter (D): From 0.3m to 2.2 m.
2> Effective Length (EL): From 6m to24m.
3> Total Length (TL): From 7m to28m.
4> Other specification of ship launching airbags also available upon customer’s request
Working pressure of ARD marine salvage airbags:
|Diameter||Layer||Work pressure||Diameter||Layer||Work pressure|
|D=0.8M||3||0.13 Mpa||D=1.5M||3||0.07 Mpa|
|4||0.17 Mpa||4||0.09 Mpa|
|5||0.21 Mpa||5||0.11 Mpa|
|6||0.25 Mpa||6||0.13 Mpa|
|7||0.30 Mpa||7||0.15 Mpa|
|8||0.33 Mpa||8||0.18 Mpa|
|D=1.0M||3||0.10 Mpa||D=1.8M||3||0.06 Mpa|
|4||0.13 Mpa||4||0.08 Mpa|
|5||0.17 Mpa||5||0.09 Mpa|
|6||0.20 Mpa||6||0.11 Mpa|
|7||0.25 Mpa||7||0.13 Mpa|
|8||0.28 Mpa||8||0.15 Mpa|
|D=1.2M||3||0.09 Mpa||D=2.0M||3||0.05 Mpa|
|4||0.11 Mpa||4||0.07 Mpa|
|5||0.14 Mpa||5||0.08 Mpa|
|6||0.17 Mpa||6||0.10 Mpa|
|7||0.20 Mpa||7||0.12 Mpa|
|8||0.23 Mpa||8||0.14 Mpa|
ARD rubber airbag application:
1. Hoisting and moving airbags: They can be widely used for moving various large prefabricated reinforced-concrete products (such as caisson, box culvert, and bridge), oil drilling equipment and integrated building, etc.

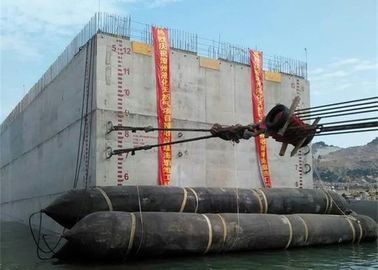

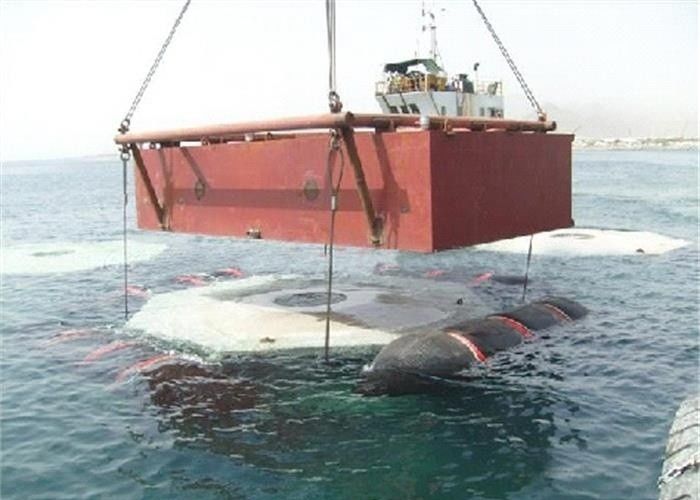

2. Floating and filling airbags:The corresponding buoyancy can be offered on the clients’ request for wreck salvage and underwater installation operation. Filling and floating gasbags can be flexibly used in the projects of wreck salvage, pontoon bridge installation, dock building, underwater transmission pipeline installation, etc. in many ways.

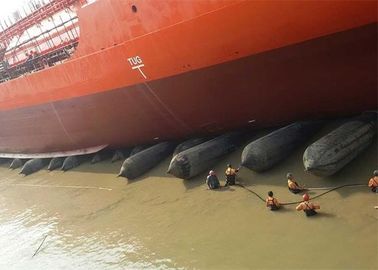

3. Ship landing and launching airbag: It is widely used for landing and launching the large-size, medium-size and small size ships, with the advantages of labor-saving, time-saving and capital-saving.
Q1: What’s the material of your products?
A:Our raw material is natural rubber, and rubber-dipped nylon cord fabric
Q2: Are you factory or trading company?
A:Qingdao Aorunda Rubber Industry Co.,Ltd is the company and factory,located in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which is convenient for transportation.
Q3: Can you do OEM?
A:Yes,we can do.As long as receive your request,we could produce accordingly.
Q4: What’s your delivery time and payment terms?
A:Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.
Q5: How can I get samples from you?
A:We are honored to provide you samples for check quality.Customers just confirm freight collect and then we could send out the sample by FedEx,DHL,UPS,TNT and so on.
Q6: What’s certificates can your company provide?
A:We can provide CCS,ABS,DNV,LR,BV certificates.
Q7: What about your warranty time?
A:Our warranty period is 24 months.During this time,any problems about products from our factory,we solemn promise to change and repair them for free;if problems from customers’ improper operating,we could provide free guidance and repair materials
