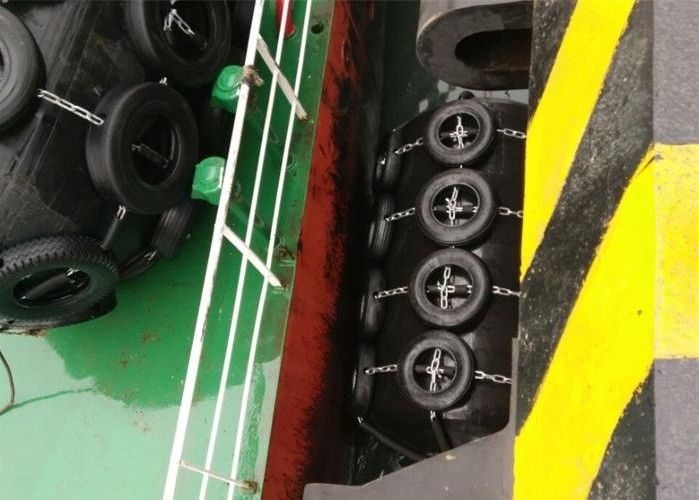

Anti Collision Marine Pier Fenders , Polyurethane Large Round Boat Fenders

Good quality Marine Salvage Airbags for sales
I'm Online Chat Now

Anti Collision Marine Pier Fenders , Polyurethane Large Round Boat Fenders

China Anti Collision Marine Pier Fenders , Polyurethane Large Round Boat Fenders supplier
Anti Collision Marine Pier Fenders , Polyurethane Large Round Boat Fenders supplier Anti Collision Marine Pier Fenders , Polyurethane Large Round Boat Fenders supplier Anti Collision Marine Pier Fenders , Polyurethane Large Round Boat Fenders supplier Anti Collision Marine Pier Fenders , Polyurethane Large Round Boat Fenders supplier

Large Image :  Anti Collision Marine Pier Fenders , Polyurethane Large Round Boat Fenders

Product Details:

Place of Origin: Shandong,China
Brand Name: ARDRUBBER
Certification: CCS,ABS,DNV,LR,BV,ISO9001
Model Number: ARDEVA fender(26)

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: nude,container
Delivery Time: 5-10 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 100 pcs/month
Contact Now
Detailed Product Description
Main Material: Polyurethane And EVA Chain: Hot Galvanizing Or Stainless Steel(304,312,316)
Length: From 0.5-9.0m Warranty Period: 24 Months
Design Using Life: Usually 10 Years Certificate: ISO9001:2008,CCS,ABS,DNV,LR,BV

Used For Quay With Anti Collision Polyurethane Marine Eva Fender



A. A heat laminated 100% closed cell and resilient foam core that is high energy absorbing, with a low reaction force and cannot be ruptured. This resilient foam-filled construction provides an unsinkable fender body that permits high energy absorption with a relatively low reaction force compared to most other fendering systems



B. Wear resistant



ARD foam filled fenders skin is constructed of a urethane elastomer which is reinforced with nylon filament in a continuous winding process. Meanwhile, multiple homogeneous layers increasing strength and additional reinforcement are applied as the transition layer. Special layers are applied to both ends where stresses are highest. This system enhances the ability of resisting to deflection and shearing force.



C. Heavy duty internal chain connecting the end fittings is applied to transmit tensile loads through the fenders. (This will be equipped as per clients requirement.)



D. The integral swivel end fittings provide secure point of attachment without obstructing, even when the fender is compressed. The fittings are constructed of top quality steel



ARD EVA fender advantages and features:



* No air against the tidal range ; proof against corrosion



* No air inflation is needed during use with safety and maintenance-free ;



* Use flange coupling and easy to install ,move and use .



* High energy absorption and low reaction force


* Low maintenance,burst resistance,and reliable performance



* Light but solid





Characteristic of ARD foam filled EVA fender:



* With the general compression fender, solid foam filled polyurethane fender with floating performance, The installation position is not subject to tidal influence



* Compared with pneumatic fenders, has better energy absorption performance, and low reaction performance



* Compared with pneumatic fenders, does not require the use of check, inflatable, with maintenance-free; no explosion risk, with safety



* Product specifications according to the needs of manufacturing, in the polyurethane fender in the specifications of the largest



ARD marine fender's range of use:



* The marine terminal fender



* Suitable for gravity and London Wharf,especially the large tidal range of the dock


* Particularly applicable to the ship by ship fender, floating fender more adaptability



* As the pier fender, protection of bridge piers,ships from damage;



* Ship-to-ship transfers,Navy berths,Oil and gas tankers,General cargo,Bulk cargo


* Ferries ,Container vessels,Cruise ships





Technical performance of EVA fender



Specification

DXL(mm)

60% Compression Deflection

(KG)

Weight Reference



(KN)

Reaction Force

(KN-M)

Energy Absorption


300x500 13 0.49 11
400x600 18 1.05 19
500x1000 38 2.18 42
600x1000 49 3.4 63
1000x1000 137 33 275
1000x1500 206 49 410
1000x2000 273 65 553
1200x1500 256 70 615
1200x2000 336 93 815
1500x2500 520 180 1550
1500x3000 626 217 1863
1600x3000 860 270 2110
2000x3500 992 458 3850
2000x4000 1120 506 4590
2200x4500 1402 682 6000
2500x4000 1415 778 6860
2500x5000 1735 992 8555
3000x5000 2060 1422 12850
3000x6000 2470 1702 15400
3300x6500 2956 2248 16690
4300x8500 19012 7398 32000
4500x9000 21520 6732 38000



1. The above performance parameters measured are based on static state;



2. Above reaction force and energy absorption to tolerance of ±10%


3. Special sizes are available upon request processing;


4. Fender accessories have all been hot dip gal



FAQ



Q1: What’s your delivery time and payment terms?

A: Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.



Q2: How can I get samples from you?

A: We are honored to provide you samples for check quality.Customers just confirm freight collect and then we could send out the sample by FedEx,DHL,UPS,TNT and so on.



Q3: What’s certificates can your company provide?

A: We can provide CCS,ABS,DNV,LR,BV certificates.



Q4: What about your warranty time?

A: Our warranty period is 24 months.During this time,any problems about products from our factory,we solemn promise to change and repair them for free;if problems from customers’ improper operating,we could provide free guidance and repair materials
