Payment & Shipping Terms:
|Thickness:||More Than 5.5mm||Layer:||3-10 Layers|
|Size:||Customized,according To Customers' Request||Pressure:||0.17-0.33Mpa|
|Package:||Pallet Or Wooden Box,according To Customers' Request||Price:||Competitive|
Used For Salvage And Floating With Inflatable Rubber Pontoon Marine Salvage Airbags

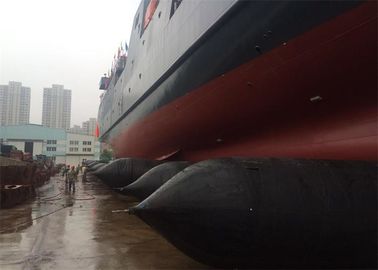

ARD salvage / refloatation marine airbags are the most commonly used tool for recovering submerged objects and supply enough buoyancy for objects. Floating ARD marine airbags are very small in size while deflated. Thus, they can be easily transported and deployed when space is an issue and under water conditions. We can provide the exact floating ton capability based on clients requirements. The ARD salvage refloatation airbags have flexible applications and can be broadly implemented in shipwreck salvaging, floating bridge and dock construction, rescue and remove of wrecked ships. It is also being use as temporary marine transportation device.
Advantages of ARD marine salvage airbags
1. Big carrying capacity
2. High capacity against compression and twisting
3. New design of anti-bursting construction at the end
4. Optimized structural layout
5. Durable aging resistance and anti-wear characteristic
6. Higher flexibility and damping capacity
Standard specifications of ARD marine salvage airbags
1> Diameter (D): From 0.3m to 2.2 m.
2> Effective Length (EL): From 6m to24m.
3> Total Length (TL): From 7m to28m.
4> Other specification of ship launching airbags also available upon customer’s request
The structure of ARD rubber airbag:
It consists of a bag body and an iron-end component. The bag body is manufactured by vulcanizing the preliminary shaped airbag made of base rubber and reinforced fiber material. The material of the iron- end component is metal, and it is connected to the bag body firmly.
Working pressure of ARD marine rubber airbag:
|Diameter||Layer||Work pressure||Diameter||Layer||Work pressure|
|D=0.8M||3||0.13 Mpa||D=1.5M||3||0.07 Mpa|
|4||0.17 Mpa||4||0.09 Mpa|
|5||0.21 Mpa||5||0.11 Mpa|
|6||0.25 Mpa||6||0.13 Mpa|
|7||0.30 Mpa||7||0.15 Mpa|
|8||0.33 Mpa||8||0.18 Mpa|
|D=1.0M||3||0.10 Mpa||D=1.8M||3||0.06 Mpa|
|4||0.13 Mpa||4||0.08 Mpa|
|5||0.17 Mpa||5||0.09 Mpa|
|6||0.20 Mpa||6||0.11 Mpa|
|7||0.25 Mpa||7||0.13 Mpa|
|8||0.28 Mpa||8||0.15 Mpa|
|D=1.2M||3||0.09 Mpa||D=2.0M||3||0.05 Mpa|
|4||0.11 Mpa||4||0.07 Mpa|
|5||0.14 Mpa||5||0.08 Mpa|
|6||0.17 Mpa||6||0.10 Mpa|
|7||0.20 Mpa||7||0.12 Mpa|
|8||0.23 Mpa||8||0.14 Mpa|
Storage of the air bag
* If the air bag will not used for quite a long time, it shall be washed and dried, filled with French chalk inside and coated with French chalk outside as well as put in dry, shady and ventilated place in the room.
* Place storing the air bag shall be far away from the heat source.
* The air bag can’t contact with acid, alkali, grease and organic solvents.
*The air bag should be stretched flat when not used. it’s not allowed to pole up and stack heavy object on the air bag.
Q1: What’s the material of your products?
A: Our raw material is natural rubber, and rubber-dipped nylon cord fabric
Q2: Are you factory or trading company?
A: Qingdao Aorunda Rubber Industry Co.,Ltd is the company and factory,located in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which is convenient for transportation.
Q3: Can you do OEM?
A: Yes,we can do.As long as receive your request,we could produce accordingly.
