Payment & Shipping Terms:
|Cord Fabric:||1880D2,100% Raw Silk||Standard:||CB/T-3795,CB/T-3837,ISO14409|
|Warranty Period:||24 Months||Design Using Life:||10 Years|
pneumatic air bags,
pneumatic lifting bags

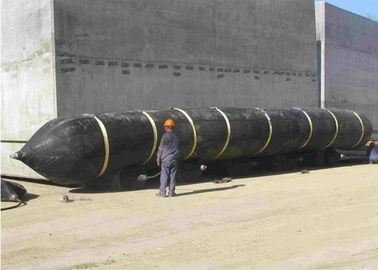

Used For Vessel Salvage Heavy Moving With Inflatable Marine Rubber Airbag
Advantages of ARD inflatable rubber airbag
1. New design of anti-bursting construction at the end
2. Optimized structural layout
3. Higher flexibility and damping capacity
Standard specifications of ARD marine rubber airbag
1> Diameter (D): From 0.3m to 2.2 m.
2> Effective Length (EL): From 6m to24m.
3> Total Length (TL): From 7m to28m.
4> Other specification of ship launching airbags also available upon customer’s request
Working pressure of ARD marine rubber airbag:
|Type||Diameter||Pressure||marine airbag can load|
|Dynamic pressure load|
|0.8m||0.06mpa||0.3m||8 ton||4 ton|
|1m||0.05mpa||0.3m||9 ton||5 ton|
|1.2m||0.05mpa||0.35m||10 ton||6 ton|
|1.5m||0.05mpa||0.7m||12 ton||8 ton|
|0.8m||0.06mpa||0.3m||9.6 ton||6 ton|
|1m||0.05mpa||0.3m||10.8 ton||7.5 ton|
|1.2m||0.05mpa||0.35m||12 ton||9 ton|
|1.8m||0.04mpa||0.8m||18 ton||15 to|
|Intertwine airbag||0.8m||0.06mpa||0.3m||12 ton||7.2 ton|
|1m||0.05mpa||0.3m||13.5 ton||9 ton|
|1.2m||0.05mpa||0.35m||15 ton||10.8 ton|
|1.5m||0.05mpa||0.7m||18 ton||14.4 ton|
|1.8m||0.4mpa||0.8m||22.5 ton||18 ton|
Hoisting and moving airbags: They can be widely used for moving various large prefabricated reinforced-concrete products (such as caisson, box culvert, and bridge), oil drilling equipment and integrated building, etc
Pre-sale service:Every product will be inspected before shipment,guarantee the quality
On-sale service:Choose suitable package and transportation,gurantee the goods reach to customers safely,save freight for customers
After-sale service:One-to-one VIP service
We solemn promise:
1) Contact with customers statedly
2) Guide the installation and using of products
3) Provide maintenance manual of related products
4) Provide mending material for products
Q1: What’s the material of your products?
A: Our raw material is natural rubber, and rubber-dipped nylon cord fabric
Q2: Are you factory or trading company?
A: Qingdao Aorunda Rubber Industry Co.,Ltd is the company and factory,located in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which is convenient for transportation.
Q3: What’s your delivery time and payment terms?
A: Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.
